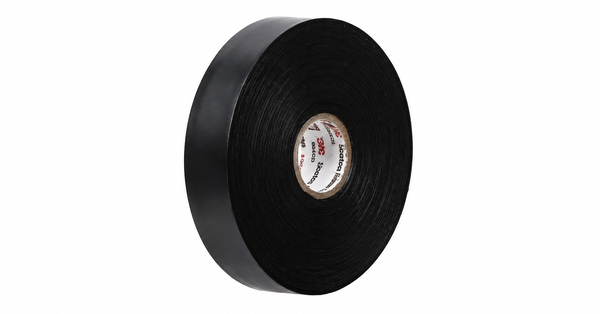

3M 130C
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Self-Fusing Linerless Insulation
- High Dielectric Strength
- 69 kV Splicing Scope
Product Description
Scotch Linerless Rubber Splicing Tape 130C is a black, linerless self-fusing EPR rubber splicing tape for primary insulation in cable splice and termination work. Its 0.76 +/- 0.076 mm construction combines an ethylene-propylene rubber backing with a fusible adhesive interlayer and is applied in highly stretched, half-lapped layers to build a uniform winding. The tape is rated for 90 deg C operation and 130 deg C emergency overload, with minimum dielectric strength of 27.6 kV/mm under ASTM D4325 test conditions. It is used for supported outdoor and underground electrical connections, including installations up to 69 kV when the specified application method and system conditions are met.
Key features
- Self-fusing EPR construction: The linerless backing and fusible interlayer combine under stretch to build a uniform insulating wrap.
- Electrical insulation performance: Minimum dielectric strength is 700 V/mil (27.6 kV/mm) under the stated ASTM D4325 condition.
- Defined temperature ratings: The tape is rated for 90 deg C operation and 130 deg C emergency overload under ASTM D4388 Type III.
Applications
Applications include primary insulation for cable splices and terminations, plus supported outdoor and underground electrical connections in installations up to 69 kV.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Mechanical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Properties are measured at 23 deg C unless the method / condition states otherwise.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Black | - | Visual |
| Backing | Ethylene-propylene rubber (EPR) | - | As supplied |
| Total thickness | 30 +/- 3 mil (0.76 +/- 0.076 mm) | - | ASTM D4325 at 23 deg C |
| Tensile strength | 250 (1.7) | psi (MPa) | Minimum; ASTM D4325 at 23 deg C |
| Elongation | 700 | % | Minimum; ASTM D4325 at 23 deg C |
| Thermal conductivity | 0.3 | W/m-K | Nominal; ASTM C518 at 23 deg C |
Final-state / after-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Operating temperature rating | 90 | deg C | ASTM D4388 Type III |
| Emergency overload rating | 130 | deg C | ASTM D4388 Type III |
| Fusion at 300% strain | Pass | - | ASTM D4325 |
| Dielectric strength | 700 V/mil (27.6 kV/mm); at least 90% after humidity | - | Minimum; standard and after 96 h at 23 deg C / 96% RH |
| Heat resistance | Pass | - | 7 days at 130 deg C; ASTM D4325 |
| Volume resistivity | 1 x 10^14 / 1 x 10^13 | ohm-cm | Minimum after 96 h at 23 deg C / 50% RH and 96% RH |
| Ozone resistance | Pass | - | ASTM D4325 |
| UV resistance | Pass | - | ASTM D4325 |
