3M DP100NS
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- 15 to 20-Minute Working Window
- Paste Consistency for Bonding
- Machinable Cured Bonding
Product Description

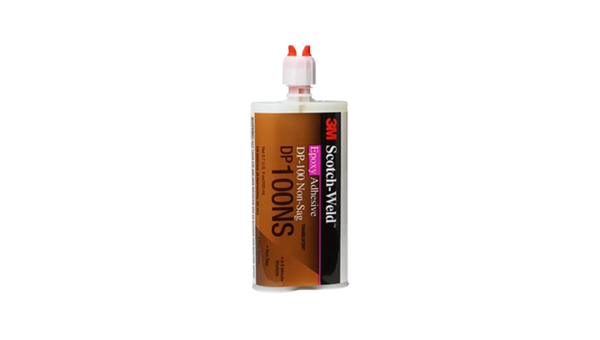

3M™ Scotch-Weld™ Epoxy Adhesive DP100NS Translucent is a fast-curing, two-part structural epoxy adhesive designed to deliver robust bonding and excellent post-cure machinability. Formulated with a non-sag paste consistency, it ensures precise application without dripping or running on vertical surfaces. This translucent adhesive provides reliable overlap shear strength across a variety of substrates, including metals, plastics, and fiberglass-reinforced plastics.
Key features
- Fast cure and non-sag: Provides a convenient 5-minute work life and sets rapidly in 15-20 minutes, with a non-sag formula that prevents run-off.
- Simple mixing: Features an easy 1:1 mix ratio by volume for accurate and consistent dispensing.
- Excellent machinability: Cures to a firm, rigid finish (82 Shore D hardness) that can be easily machined after curing.
Applications / Suitable for
- Structural bonding of metals, including aluminum, steel, copper, and brass
- Adhering various plastics such as ABS, PVC, acrylic, and polycarbonate
- Assemblies requiring fast cure times and post-cure machinability
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix Ratio by Volume | 1:1 | - | B:A |
| Mix Ratio by Weight | 1:0.96 | - | B:A |
| Color | Translucent | - | - |
| Viscosity | 90,000-150,000 | cP | Base at 27°C (80°F) |
| Viscosity | 50,000-85,000 | cP | Accelerator at 27°C (80°F) |
| Worklife | 5 | minutes | 10g mixed at 23°C (73°F) |
| Set Time | 15-20 | minutes | at 23°C (73°F) |
After-processing / final-state properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured Color | Translucent | - | - |
| Shore Hardness | 82 | Shore D | ASTM D2240 at 23°C (73°F) |
| Compression Strength | 8,400 | lb/in² | ASTM D695 at 23°C (73°F) |
| Overlap Shear Strength | 890 | lb/in² | Cold Rolled Steel, 7 d cure at 23°C (73°F) |
| Overlap Shear Strength | 570 | lb/in² | Aluminum, 7 d cure at 23°C (73°F) |
| T-Peel Adhesion | 2 | lb/in width | ASTM D1876, Aluminum at 23°C (73°F) |
| Glass Transition Temperature (Tg) | 34 | °C | (93°F) Mid-Point |
| Volume Resistivity | 2.2E+14 | Ohm-cm | ASTM D257 at 23°C (73°F) |
