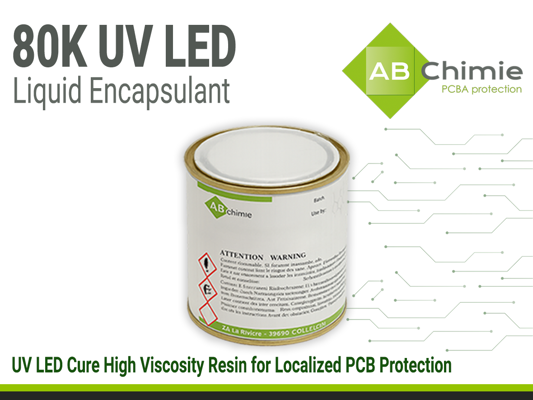

ABchimie 80K UV LED High Viscosity Resin
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Soft, flexible resin
- Excellent adhesion
- UL 94 V‑0 flammability rating
Product Description
ABchimie 80K UV LED is a soft, one‑component resin optimized for UV LED curing, providing rapid, energy‑efficient polymerization with low heat generation. It is designed for local protection and mechanical reinforcement, especially for tall or vibration‑sensitive components.
The resin supports high‑thickness applications up to 5 mm, offering robust humidity and thermal resistance. With strong adhesion to numerous substrates and no VOC, ABchimie 80K UV LED enables clean and efficient processing in modern electronic manufacturing environments.
Product Key Features
- Soft, flexible resin for shock and vibration damping
- Excellent adhesion on PCBs, plastics, and other substrates
- High‑speed process suitable for modern LED‑equipped production lines
- One‑component, ready‑to‑use formulation
- UL 94 V‑0 flammability rating qualified (QMJU2‑E308681)
Applications
- Local encapsulation using UV LED curing systems
ABCHIMIE 80KUVLED
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Thermal Properties
Electrical Properties
Additional Information
Curing Profile
Recommended settings for the best properties of the resin ABchimie80K UV LED (LED lamp 395 nm):
- Minimum UVA2 dose : 3000mJ/cm2 (to a 1mm-thickness)
The UVA dose is a minimum dose recommended. The intensity depends on the lamp power and the lampe distance.
UVA dose may be increased by a longer exposure time. A higher dose of UV or an overexposure will not damaged the product. However a lower UVA dose can have a detrimental effect on product final properties therefore it is very important to ensure minimum recommended UVA dose is met with your curing system.
