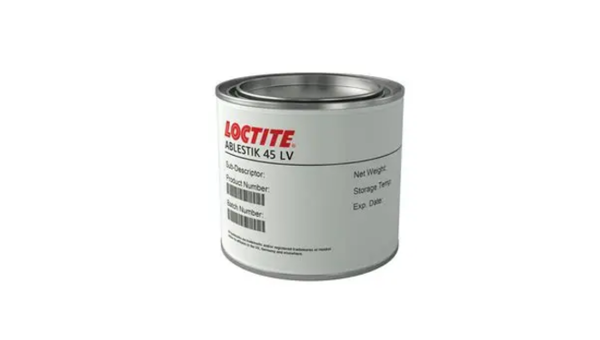

ABLESTIK 45LV
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Flexible Cured Adhesive
- 16,000 to 30,000 mPa s Mixed Viscosity
- 16 kV/mm Dielectric Strength
Product Description
LOCTITE® ABLESTIK 45 LV is a two-component, low-viscosity epoxy adhesive for general assembly bonding of metals, glass, and plastics, including dissimilar substrate combinations such as metal-to-plastic assemblies. Used with LOCTITE® CAT 15LV, the system supports rigid, semi-rigid, or flexible formulations through resin-to-hardener mix ratios of 100:25, 100:50, or 100:100 by weight. Mixed viscosity ranges from 16,000 to 30,000 mPa·s, depending on the selected formulation, with guideline room-temperature and accelerated heat-cure schedules. The cured formulations provide electrical insulation, thermal conductivity of 0.4 W/(m·K), and formulation-dependent mechanical flexibility and operating-temperature capability.
Key features
- Variable cured flexibility: Rigid, semi-rigid, and flexible formulations are produced using documented 100:25, 100:50, and 100:100 resin-to-hardener ratios by weight.
- Low-viscosity assembly bonding: Mixed viscosity ranges from 16,000 to 30,000 mPa·s, depending on formulation.
- Room-temperature or heat cure: Guideline schedules range from 16 to 24 hours at 25°C to 30 to 60 minutes at 90°C.
Applications / Suitable for
- General assembly bonding
- Bonding metals, glass, and plastics
- Bonding dissimilar substrates such as metal to plastic
- Assemblies requiring rigid, semi-rigid, or flexible cured adhesive behavior
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Typical component, mixed, handling, storage, and guideline cure information before final processing.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Technology | Epoxy | — | Two-component adhesive system |
| Appearance — resin | Black liquid | — | Component A; TDS and resin SDS description |
| Appearance — hardener | Black | — | Component B, LOCTITE CAT 15LV |
| Resin viscosity | 35,000 | mPa·s (cP) | Part A; test method and temperature not stated |
| Resin specific gravity | 1.58 | — | TDS value; resin SDS reports relative density of 1.6 |
| Hardener viscosity | 11,000 | mPa·s (cP) | LOCTITE CAT 15LV; test method and temperature not stated |
| Hardener specific gravity | 0.97 | — | LOCTITE CAT 15LV |
| Mix ratio — rigid formulation | 100:25 | by weight | Resin:LOCTITE CAT 15LV |
| Mixed viscosity — rigid formulation | 30,000 | mPa·s (cP) | Test method and temperature not stated |
| Working time — rigid formulation | 120 | minutes | 100 g mass at 25°C |
| Mix ratio — semi-rigid formulation | 100:50 | by weight | Resin:LOCTITE CAT 15LV |
| Mixed viscosity — semi-rigid formulation | 25,000 | mPa·s (cP) | Test method and temperature not stated |
| Working time — semi-rigid formulation | 90 | minutes | 100 g mass at 25°C |
| Mix ratio — flexible formulation | 100:100 | by weight | Resin:LOCTITE CAT 15LV |
| Mixed viscosity — flexible formulation | 16,000 | mPa·s (cP) | Test method and temperature not stated |
| Working time — flexible formulation | 90 | minutes | 100 g mass at 25°C |
| Resin shelf life | 12 | months | At 25°C |
| Guideline cure schedules | 16–24 hours, 4–6 hours, 2–4 hours, or 30–60 minutes | — | 16–24 hours at 25°C; 4–6 hours at 45°C; 2–4 hours at 65°C; or 30–60 minutes at 90°C |
After-processing / final-state properties
Typical cured properties by formulation. Values depend on the selected resin-to-hardener ratio and are reference data rather than product specifications.
| Property | Rigid | Semi-rigid | Flexible | Unit / method / condition |
|---|---|---|---|---|
| Operating-temperature range | -40 to 90 | -55 to 80 | -55 to 65 | °C; documented formulation ranges |
| Glass-transition temperature | 68 | 38 | 21 | °C; ISO 11357-2 |
| Coefficient of thermal expansion — below Tg | 55 | 63 | 80 | ppm/°C; ASTM D3386 |
| Coefficient of thermal expansion — above Tg | 148 | 159 | 188 | ppm/°C; ASTM D3386 |
| Thermal conductivity | 0.4 | 0.4 | 0.4 | W/(m·K); test method and temperature not stated |
| Hardness | 82 | 74 | 50 | Shore D; ISO 868 |
| Water absorption — 24 hours | 0.1 | 0.2 | 1.7 | %; ASTM D570 |
| Dielectric breakdown strength | 16 | 16 | 16 | kV/mm; IEC 60243-1 |
| Volume resistivity | >1 × 1015 | >1 × 1015 | >1 × 1015 | Ω·cm; IEC 60093 |
| Aluminum lap shear strength at 25°C | 17 (2,400) | 16 (2,300) | 7 (1,000) | N/mm² (psi); ISO 4587 |
| Aluminum lap shear strength at 65°C | 9 (1,300) | 3.5 (500) | — | N/mm² (psi); ISO 4587 |
