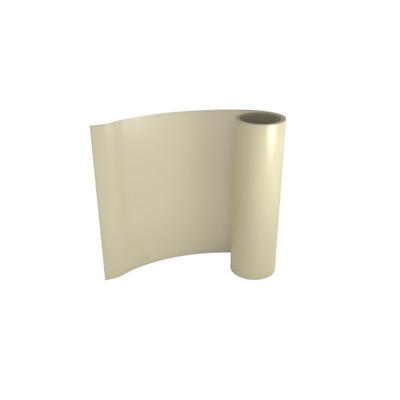

LOCTITE ABLESTIK 561K
Harmonization Code : 3920.99.28.90 | Other plates, sheets, film, foil and strip, of plastics, non-cellular and not reinforced, laminated, supported or similarly combined with other materials ; Of other plastics ; Other; Other
Main features
- Reworkable
- Flexible
- Thermally conductive
Product Description
LOCTITE ABLESTIK 561K is a white epoxy film designed for substrate attach and heat sink bonding. This adhesive film is designed for bonding materials with severely mismatched coefficients of thermal expansion. All data and results will vary with different thicknesses.
LOCTITE ABLESTIK 561K is a reworkable assembly film that passes NASA outgassing standards. If you require a low temperature cure you can consider LOCTITE ABLESTIK 566K. It is mainly used for substrate attach and heat sink bonding and has a glass fabric carrier.
Cure Schedule
- 30min @150°C
- 2 hours @ 125°C
ABLESTIK 561K
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 20 days
Shipping in 12 weeks
Shipping in 45 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Electrical Properties
Chemical Properties
Additional Information
How does ABLESTIK 561K compares to ABLESTIK 566K?
The storage temperature of both materials is as low as -40 °C to guarantee its material properties over a longer range of time.
The 561K is a great reference material that can be stored at -40 °C for 12 months but can also be stored at ambient (25 °C) for up to 6 months without loss of performance.
The difference with 561K however, in the higher minimum cure schedule of 125 °C for 2 hours.
The 566K material can cure at 100 °C but this is achieved by an increased catalyst load making the material more reactive, giving it shorter shelf life. (We would expect -20 °C storage to be sufficient for the 566K for 3-6 months)
Essentially you end up with two options:
- Use 561K with 6 months storage at 25 °C and accept a higher 125 °C cure
- Use 566K with 3-6 months storage at -20 °C and cure at 100 °C
