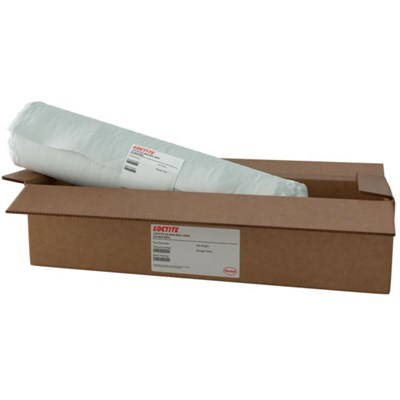

LOCTITE ABLESTIK NCF 234
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- Non-conductive Underfill Film
- Enable fine pitch, narrow gap Cu Pillar
- Pb-free & low κ
Product Description
LOCTITE ABLESTIK NCF 234 transparent film is specially formulated for Pb free, low κ, thin gap, large and thin die used in advance flip chip applications. NCF 234 is suitable for die to die, die to wafer (TSV) or die to substrate applications.
ABLESTIK NCF234
1. Select Length
2. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 48 days
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 48 days Shipping in 12 weeks Shipping in 12 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Film ThicknessFilm Thickness
34 µmThermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
105 °CAdditional Information
Thawing
- Allow container to reach room temperature before use, normally 30 minutes.
Recommended Cure Schedule
- 30 minutes ramp to 175ºC, hold 2 hours @ 175°C
