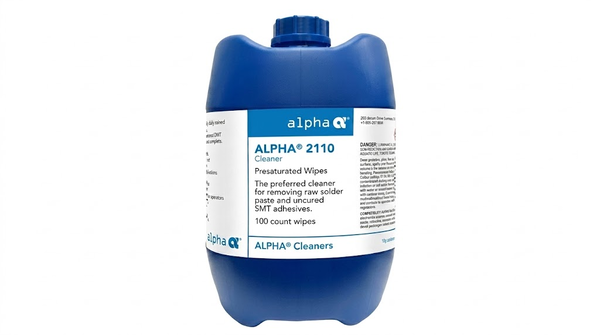

ALPHA 2110
Harmonization Code : 3404.90.00.00 | Artificial waxes and prepared waxes : Other
Main features
- Aqueous Rosin Residue Removal
- Multiple Cleaning Equipment Formats
- Stable Silicone-Free Wash Solution
Product Description
ALPHA 2110 Electronic Cleaner is a concentrated aqueous saponifier for removing rosin flux residues from printed circuit boards and electronics assemblies. It is used at 3 to 5 vol% in conveyorized equipment, 4 to 8 vol% in soak tanks, 2 to 3 vol% in modified dishwashers, and 10 vol% for reflowed rosin-paste residues. Recommended wash temperature is 150 to 160 deg F. The buffered cleaner maintains solution composition during recirculation and operates without silicone defoamers. Wetted equipment parts should not use polycarbonate, Viton, neoprene, natural rubber, copper, aluminum, brass, or galvanized metal.
Key features
- Aqueous rosin-residue cleaning: Converts rosin residues into water-soluble soaps for removal from printed circuit assemblies.
- Equipment-specific concentration ranges: Defined use levels cover conveyorized machines, soak tanks, modified dishwashers, and reflow-paste residues.
- Recirculated solution stability: Maintains composition during prolonged recirculation and operates without silicone defoamers.
Applications
Applications include removing rosin flux residues from printed circuit boards and electronics assemblies in conveyorized machines, soak tanks, and modified dishwashers.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Concentrations are by volume for the cleaner concentrate; the appropriate level depends on throughput, wash time, and contamination load.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Specific gravity | 1.001 +/- 0.005 | 25 deg C | |
| pH | 11.6 | 5 vol% solution | |
| Flash point | 99 | deg C | Cleveland Open Cup |
| Recommended concentration, conveyorized | 3 to 5 | vol% | Wash solution |
| Recommended concentration, soak tank | 4 to 8 | vol% | Wash solution |
| Recommended concentration, modified dishwasher | 2 to 3 | vol% | Wash solution |
| Recommended concentration, reflowed rosin-paste residue | 10 | vol% | Wash solution |
| Recommended wash temperature | 150 to 160 | deg F | Typical wash tank |
