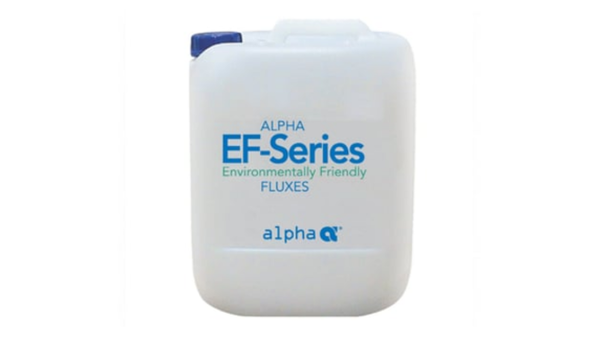

ALPHA EF-6100-R
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- Low-solids, alcohol-based no-clean rework flux supporting both lead-free and tin-lead soldering with fast wetting and a wide thermal process window.
- Very low levels of non-tacky residue help minimize interference with pin testing while supporting no-clean processing.
- ORL0 classification backed by documented IPC J-STD-004A/J-STD-004B SIR, Bellcore SIR, electromigration, and corrosion test results.
Product Description
ALPHA EF-6100-R No-Clean Rework Flux is a low-solids, alcohol-based flux developed for lead-free and tin-lead rework soldering. Its thermally stable activator and solvent system supports fast wetting across different solder alloys while maintaining a wide thermal process window. The no-clean formulation leaves a very low level of non-tacky residue and is designed to reduce interference with pin testing. ALPHA EF-6100-R is classified ORL0 according to IPC J-STD-004 and has documented surface insulation resistance and electromigration performance. It can be applied using a flux pen, brush, or spray bottle for localized rework operations.
Key features
- Lead-free and tin-lead rework capability: Provides fast wetting across different Pb-free and SnPb alloys with a wide thermal process window.
- Low-residue no-clean formulation: Leaves a very low level of non-tacky residue designed to reduce interference with pin testing.
- Documented electrical reliability: ORL0 flux with documented IPC J-STD-004A/J-STD-004B SIR and Bellcore SIR and electromigration test results.
Applications / Suitable for
- Lead-free soldering rework
- Tin-lead soldering rework
- Localized flux application using flux pens, brushing, or spray bottles
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Selected typical properties of ALPHA EF-6100-R in its as-supplied liquid state.
| Property | Value | Unit | Method or condition |
|---|---|---|---|
| Appearance | Clear, colorless liquid | - | Typical |
| Solids content | 4.3 | % by wt | Typical |
| Acid number | 26.2 +/- 1.3 | mg KOH/g | Typical |
| Specific gravity | 0.818 +/- 0.003 | - | 25 °C (77 °F) |
| Flash point | 60 (15.6) | °F (°C) | T.C.C. |
| pH | 3.2 | - | 5% aqueous solution |
| Flux classification | ORL0 | - | IPC J-STD-004 |
After-processing / final-state properties
Selected electrical reliability and corrosion results for uncleaned ALPHA EF-6100-R residues under the stated test conditions.
| Property | Value | Unit | Method or condition |
|---|---|---|---|
| SIR - Comb-Down, uncleaned | 4.4 x 109 | ohms | IPC J-STD-004A; 85 °C/85% RH, 7 days, -50 V; measurement at 100 V on IPC B-24 board |
| SIR - Comb-Up, uncleaned | 4.2 x 109 | ohms | IPC J-STD-004A; 85 °C/85% RH, 7 days, -50 V; measurement at 100 V on IPC B-24 board |
| SIR - Comb-Down, uncleaned | 2.4 x 1012 | ohms | IPC J-STD-004B TM2.6.3.7; IPC B-24 coupons, 12 V, 40 °C, 90% RH |
| Bellcore SIR - Comb-Down, uncleaned | 4.9 x 1011 | ohms | GR 78-CORE, Issue 1; 35 °C/85% RH, 4 days, 48 V; measurement at 100 V |
| Bellcore electromigration - Comb-Down, uncleaned | Pass | - | GR 78-CORE, Issue 1; initial SIR 4.5 x 108 ohms, final SIR 5.2 x 109 ohms; 65 °C/85% RH, 500 hours, 10 V |
| IPC copper corrosion | No evidence of corrosion | - | ORL0 corrosion testing |
