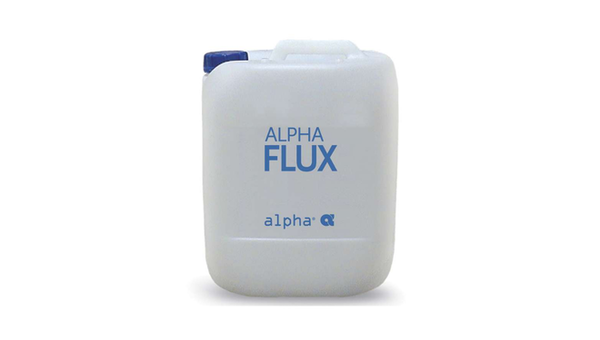

ALPHA SM351F
Harmonization Code : 3404.90.00.00 | Artificial waxes and prepared waxes : Other
Main features
- Fast-Wetting Foam and Wave Flux
- Tack-Free Pin-Testable Residue
- Halide-Free Low-Solids Formulation
Product Description
ALPHA SM-351F Liquid Soldering Flux uses a low-solids no-clean liquid formulation without halides, rosin, or resin for foam and wave soldering. It is designed for fast wetting and leaves a very small amount of barely visible, tack-free, noncorrosive residue. This residue profile supports accurate pin testing and eliminates a required post-solder cleaning step under the documented use conditions. The flux is classified ORL0 under IPC J-STD-004 and L3NC under IPC-SF-818. As supplied, it contains 2.1% solids, has an 11 deg C flash point, and carries a 540-day shelf life. Typical specific gravity is 0.812 +/- 0.005 at 25 deg C; acid number is 16.5 +/- 1.0 mg KOH/g.
Key features
- Halide- and rosin-free: Low-solids formulation supports no-clean electronics soldering.
- Fast wetting: Designed for efficient foam and wave soldering application.
- Tack-free noncorrosive residue: Barely visible residue supports accurate pin testing without required cleaning.
Applications
Foam or wave soldering for electronic circuit assemblies.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Clear, pale-yellow liquid | Typical | |
| Solids content | 2.1 | % by weight | Typical |
| Specific gravity | 0.812 +/- 0.005 | 25 deg C | |
| Acid number | 16.5 +/- 1.0 | mg KOH/g | Typical |
| Flash point | 11 | deg C | T.C.C. |
| Shelf life | 540 | days | From date of manufacture |
| Flux classification | ORL0 | IPC J-STD-004 |
