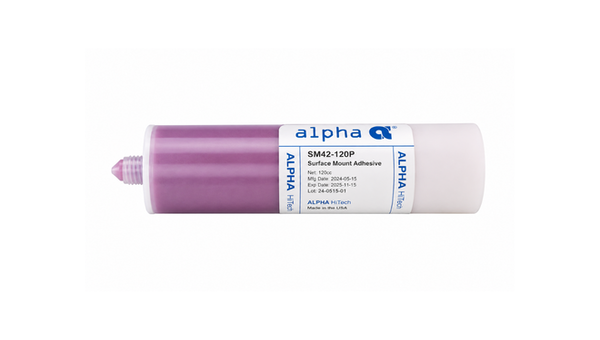

ALPHA SM42-120P
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- One-component, fast-curing epoxy surface mount adhesive designed for both screen printing and dispensing.
- Non-sagging formulation with documented excellent adhesion, thermal resistance, and workability.
- Cured material provides a Tg of 110 +/- 10 °C and insulation resistance greater than 1 x 10^12 ohms after 96 hours at 85 °C/85% RH.
Product Description
ALPHA HiTech SM42-120P Surface Mount Adhesive is a one-component, fast-curing epoxy adhesive designed for screen printing and dispensing in surface mount assembly. The red paste combines non-sagging behavior with documented adhesion, thermal resistance, and workability characteristics. It can be screen printed at room temperature or applied by dispensing, with full property development using the documented thermal cure schedules. ALPHA HiTech SM42-120P is also identified as halogen-free and compliant with RoHS Directive EU/2015/863.
Key features
- Fast-curing one-component epoxy: Supplied as a ready-to-use red paste for surface mount adhesive applications.
- Screen print and dispense capable: Can be effectively screen printed at room temperature and is also suitable for dispensing.
- Non-sagging with strong functional properties: Documented features include non-sagging behavior, excellent adhesion, thermal resistance, and workability.
- Halogen-free formulation: Identified as halogen-free and compliant with RoHS Directive EU/2015/863.
Applications / Suitable for
- Surface mount adhesive applications
- Screen printing at room temperature
- Dispensing processes
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
General Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Selected typical uncured material properties of ALPHA HiTech SM42-120P.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemistry | Epoxy | - | One-component surface mount adhesive |
| Appearance | Red paste | - | Uncured |
| Viscosity | 550 to 700 | Poise | Malcom PC-10A, 30 rpm at 25 °C |
| Specific gravity | 1.2 to 1.4 | - | Typical uncured material property |
| Thixotropic index | ≥ 3.0 | - | Typical uncured material property |
| Pot life | 7 | days | 25 °C |
After-processing / final-state properties
Selected typical cured material properties of ALPHA HiTech SM42-120P.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Glass transition temperature (Tg) | 110 +/- 10 | °C | DSC |
| CTE (α1), below Tg | 65 +/- 10 | ppm | TMA |
| CTE (α2), above Tg | 190 +/- 20 | ppm | TMA |
| Corrosion | None | - | 96 hours at 40 °C, 95% RH |
| Moisture absorption | < 1.0 | wt% | 24 hours, H2O at 25 °C |
| Insulation resistance | >1 x 1012 | ohms | 96 hours at 85 °C, 85% RH |
| Hardness | 80 to 90 | Shore D | Typical cured material property |
