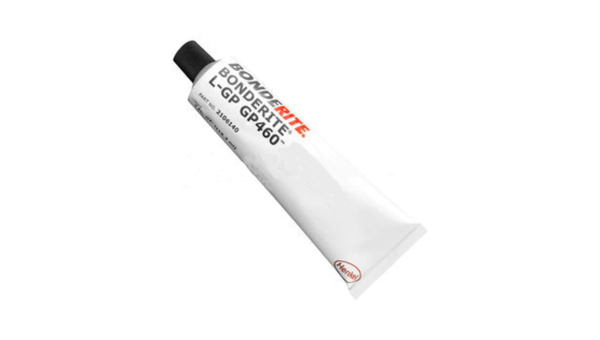

BONDERITE L-GP 460
Harmonization Code : 3909.20.00.90 | Amino-resins, phenolic resins and polyurethanes, in primary forms : Melamine resins : Other
Main features
- High-Purity Graphite Anti-Seize Lubricant
- High-Load Extreme-Pressure Lubrication
- Up to 538 deg C Service
Product Description
BONDERITE® L-GP GP 460 ACHESON is a graphite-based anti-seize lubricant formulated with high-purity graphite in a petrolatum carrier to provide long-lasting lubrication over a wide temperature range. The paste withstands extreme pressure, carries high loads, and reduces friction, galling, and seizing on threaded components and other heavily loaded assemblies. It is supplied ready for use and is suitable for refinery, chemical processing, industrial, steam-generation, and aerospace maintenance applications. The product also meets the requirements of General Electric Specification A50TF201. :contentReference[oaicite:0]{index=0}
Key Features
- High-purity graphite anti-seize lubricant in a petrolatum carrier.
- Withstands extreme pressure while reducing friction, galling, and seizing.
- Provides long-lasting lubrication over a wide operating temperature range.
- Ready-to-use paste for brush, swab, or hand grease gun application.
- Meets General Electric Specification A50TF201.
Applications / Suitable for
- Threaded fasteners and fittings
- Aircraft engine spark plugs
- Splines, gears, couplings, flanges and valve stems
- Bearings, bushings and press fits
- Refinery, chemical, industrial and steam-generation plants
- Salt-laden service environments
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-Supplied / Before-Processing Properties
| Property | Value | Unit | Method / Condition |
|---|---|---|---|
| Lubricating pigment | Graphite | — | As supplied |
| Carrier | Petrolatum | — | As supplied |
| Consistency | Paste | — | As supplied |
| Solids content | 50 | % | As supplied |
| Density | 10.8 (1.29) | lb/gal (kg/L) | As supplied |
| Flash point | Minimum 200 (400) | °C (°F) | Supplier value |
| Shelf life | 2 years from date of qualification under original seal | — | Supplier recommendation |
After-Processing / Final-State Properties
| Property | Value | Unit | Method / Condition |
|---|---|---|---|
| Maximum operating temperature | 538 (1000) | °C (°F) | Maximum operating temperature |
| Pressure capability | Withstands extreme pressure and carries high loads | — | Supplier description |
| Lubrication performance | Reduces friction, galling and seizing | — | Supplier description |
| Application methods | Brush, swab or hand grease gun | — | Ready for use |
| Pressurized lubrication systems | Not intended for use | — | Due to high solids content |
