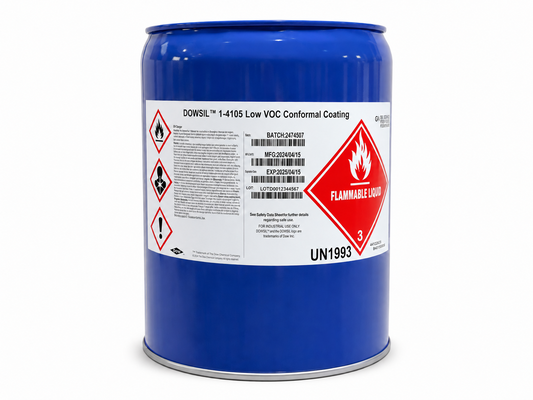

DOWSIL™ 1-4105 Conformal Coating
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- One-part, solventless silicone conformal coating
- Cures to a soft, low-stress elastomer
- Wide operating temperature range (-45°C to 200°C)
Product Description
DOWSIL™ 1-4105 Conformal Coating is a one-part, transparent silicone conformal coating designed to provide reliable mechanical and environmental protection for printed circuit boards and electronic assemblies. This solventless, heat-curable material features a low viscosity formulation that enables excellent flow and coverage across densely populated boards and tight geometries. Upon curing, it forms a soft, low-stress elastomer that protects sensitive components from mechanical and thermal stress while maintaining long-term reliability.
DOWSIL 1-4105 supports rapid and controlled heat cure processing at relatively low temperatures and offers a long working life at room temperature. The coating includes a UV indicator for automated inspection and quality control, ensuring consistent application in high-volume manufacturing. It is compatible with no-clean and lead-free soldering processes and provides strong adhesion to a wide range of PCB substrates.
Product Key Features
- One-part, solventless silicone conformal coating
- Heat cure system for controlled and rapid processing
- Low viscosity for enhanced flow and gap
- Cures to a soft, low-stress elastomer
- UV indicator for inspection and process control
- High dielectric strength and electrical insulation performance
- Compatible with no-clean and lead-free soldering processes
- Long pot life for extended usability in production
- Wide operating temperature range (-45°C to 200°C)
- UL94 V-1 flammability rating
Applications
- Conformal coating for printed circuit board (PCB) assemblies
- Protection for rigid and flexible circuit boards
- High-density and fine-pitch electronic assemblies
- Automotive electronics and control systems
- Industrial automation and control equipment
- Consumer electronics requiring low-stress protection
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Electrical Properties
Additional Information
Frequently Asked Questions About DOWSIL™ 1-4105 Conformal Coating
What are typical applications for DOWSIL™ 1-4105?
DOWSIL™ 1-4105 is used to protect printed circuit boards and assemblies where low-stress protection and reliable environmental performance are required, including:
- Automotive electronics
- Industrial control systems
- Consumer electronics
- High-density PCB assemblies
Why choose DOWSIL™ 1-4105?
This coating provides excellent stress relief for delicate components due to its soft elastomeric properties. Its low viscosity ensures complete coverage in complex assemblies, while the heat cure system enables fast and controlled processing in production environments.
What is the curing method?
DOWSIL™ 1-4105 cures באמצעות heat at relatively low temperatures. Typical curing conditions are around 10 minutes at 105°C, depending on board mass and configuration.
What application methods are supported?
The coating supports spray, brush, dip, flow, and automated selective coating processes, making it suitable for both manual and high-volume manufacturing.
What surface preparation is required?
All substrates should be clean, dry, and free from contaminants such as oils, dust, or flux residues to ensure optimal adhesion and coating performance.
Is the coating repairable?
Yes, the coating can be removed mechanically or with solvents for repair and rework. After repair, the area can be recoated to restore full protection.
Learn More About DOWSIL™ 1-4105
DOWSIL™ 1-4105 Conformal Coating is designed for high-reliability electronics requiring low-stress protection and efficient processing. This heat-cure silicone conformal coating provides excellent flow, electrical insulation, and durability while supporting scalable manufacturing processes.
Main Advantages of DOWSIL 1-4105
Enhances flow and penetration into narrow gaps and densely populated assemblies for complete coverage.
Cures to a soft, flexible material that minimizes mechanical stress on sensitive electronic components.
Enables rapid and controlled curing at relatively low temperatures, improving manufacturing throughput.
Integrated UV indicator supports automated inspection and consistent quality control.
How to Choose a Conformal Coating
- ✔ Environmental exposure
- ✔ Mechanical protection needs
- ✔ Processing requirements
- ✔ Repairability
- ✔ Application method
- ✔ Operating temperature
Compliance You Can Trust ✅
- UL746E Recognized
- UL94 V-1 Flammability Rating
- Designed for high-reliability electronics applications
