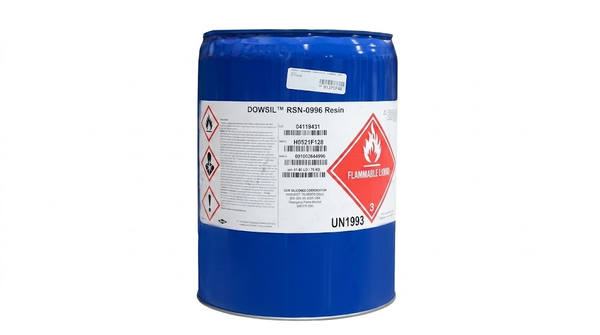

DOWSIL RSN-0996
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Motor/Coil/Transformer Impregnating Varnish
- 150 deg C Minimum Cure Temperature
- 1,626 V/mil Dielectric Strength
Product Description
DOWSIL™ RSN-0996 Resin is a clear-blue silicone resin in xylene used as a general-purpose impregnating varnish for motors, coils, and transformers. The varnish is documented for cure temperatures as low as 150°C and for long service at a 220°C hottest-spot temperature. It combines electrical properties, bond strength, moisture resistance, and a drainage profile intended to limit runoff during cure. Typical published data identify a relative density of 1.00 to 1.02 and dielectric strength of 1,626 V/mil, while the exact current technical data sheet should be confirmed before publication.
Key features
- General-purpose impregnating varnish: The silicone resin is documented for motors, coils, and transformers.
- Elevated-temperature service: The varnish may cure from 150°C and is documented for long service at a 220°C hottest-spot temperature.
- Electrical insulation: Published typical data identify dielectric strength of 1,626 V/mil.
Applications / Suitable for
- Motor winding impregnation
- Coil impregnation
- Transformer varnishing
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Product form | Silicone resin varnish | N/A | As supplied |
| Color | Clear blue | N/A | As supplied |
| Solvent | Xylene | N/A | As supplied |
| Relative density | 1.00 to 1.02 | N/A | Published typical range |
After-processing / final-state properties
Typical cured, installed, or in-use values under the stated conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Dielectric strength | 1,626 | V/mil | Published typical value |
| Minimum documented cure temperature | 150 | °C | Product overview |
| Hottest-spot service temperature | 220 | °C | Documented long-service reference |
