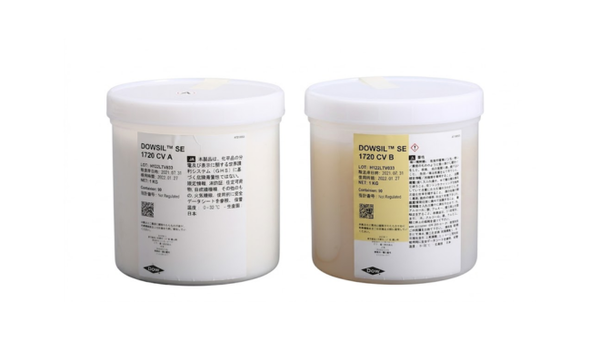

DOWSIL SE 1720
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- 1:1 Controlled Mixing
- 89,700 cP Mixed Viscosity
- 50-Minute 70 deg C Cure
Product Description
DOWSIL™ SE 1720 CV Adhesive Kit is a two-part, white, flowable silicone adhesive with a 1:1 mix ratio and controlled volatility for electronic assembly processes. The solvent-free material may be dispensed manually or automatically and has a typical mixed viscosity of 89,700 cP with a six-hour working time at 25°C. Documented cure schedules range from 50 minutes at 70°C to 10 minutes at 100°C. Applications include sealing ceramic condensers and printed circuit-board module components and bonding computer keypad assemblies. Typical cured properties include 3.3 MPa tensile strength, 375% elongation, and Shore A 33 hardness.
Key features
- Flowable 1:1 system: The two-part adhesive supports manual or automated needle dispensing.
- Moderate-temperature cure: Documented cure schedules range from 50 minutes at 70°C to 10 minutes at 100°C.
- Controlled-volatility elastomer: Typical cured data include 3.3 MPa tensile strength and 375% elongation.
Applications / Suitable for
- Sealing ceramic condensers
- Sealing printed circuit-board module components
- Bonding computer keypad assemblies
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | White | N/A | As supplied |
| Mix ratio | 1:1 | ratio | Part A : Part B |
| Viscosity, Part A | 37,700 | cP | Typical |
| Viscosity, Part B | 41,900 | cP | Typical |
| Mixed viscosity | 89,700 | cP | Typical |
| Working time | 6 | h | At 25°C |
| Heat cure | 50 min at 70°C; 30 min at 80°C; 10 min at 100°C | N/A | Documented schedules |
After-processing / final-state properties
Typical cured, installed, or in-use values under the stated conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured specific gravity | 1.06 | N/A | Typical cured value |
| Tensile strength | 3.3 | MPa | Typical cured value |
| Elongation | 375 | % | Typical cured value |
| Tensile modulus | 0.9 | MPa | Typical cured value |
| Hardness | 33 | Shore A | JIS |
| Lap shear adhesion | 1.6 | MPa | Unprimed aluminum |
