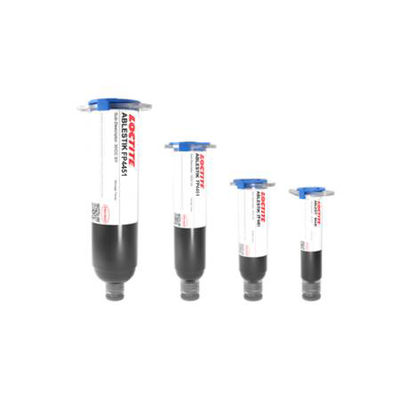

LOCTITE ECCOBOND FP4451
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Encapsulant - DAM
- High purity
- Minimal slumping
Product Description
LOCTITE ECCOBOND FP4451 is the industry standard damming material, designed as a flow control barrier around areas of bare chip encapsulation.
LOCTITE ECCOBOND FP4451 is designed to be used in combination with FP4450 fill encapsulant. It passes pressure pot performance on live devices up to 500 hours with no failures depending on device and package type.
Recommended Cure Schedule
- 30 minutes @ 125°C plus
- 90 minutes @ 165°C
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Pot LifePot Life
48 hoursSpecific GravitySpecific Gravity
1.76Thermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
155 °COther Properties
MSL LevelMSL Level
MSL 2Physical Properties
ViscosityViscosity
1,300,000 mPa.s
