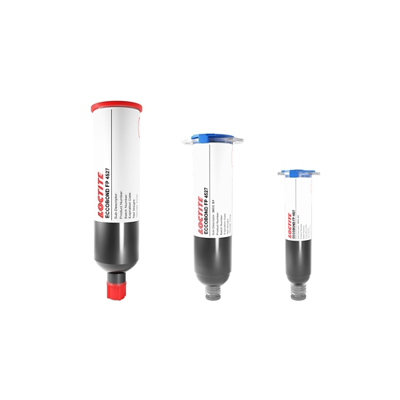

LOCTITE ECCOBOND FP4527
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Low viscosity
- High flow
- Excellent wettability
Product Description
LOCTITE® ECCOBOND FP4527 epoxy underfill has excellent wettability and is typically used on a semiconductor level as a capillary underfill.
LOCTITE® ECCOBOND FP4527 is a low viscosity, high flow, epoxy based material designed for capillary underfill on flip chip applications.
Cure Schedule
- 15 minutes @ 165°C (hot plate)
- 30 minutes @ 165°C (convection)
- 1hour @110°C + 30 minutes @150°C (convection)
ECCOBOND FP4527
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 94 days
Shipping in 12 weeks
Shipping in 95 days
Shipping in 94 days Shipping in 12 weeks Shipping in 95 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Filler ContentFiller Content
68 %Pot LifePot Life
48 hoursThermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
158 °CChemical Properties
Moisture absorptionMoisture absorption
1.5 %Physical Properties
ViscosityViscosity
12,000 mPa.s
