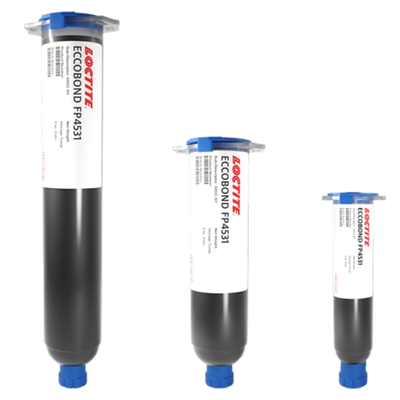

LOCTITE ECCOBOND FP4531
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Snap cure
- Fast flow
- Passes NASA outgassing
Product Description
LOCTITE® ECCOBOND FP4531 underfill is designed for flip chip on flex applications with a 1mil gap. It is a snap curable epoxy with fast flow that passes NASA outgassing standards.
LOCTITE® ECCOBOND FP4531 is 62% filled, offers a pretty long pot life and has limited impurities. Its snap cure schedule can vary based on customer's experience and application requirements.
Snap Cure Schedule
- 7 minutes @ 160°C
ECCOBOND FP4531
1. Select Package Type
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 56 days
Shipping in 12 weeks
Shipping in 45 days
Shipping in 56 days Shipping in 12 weeks Shipping in 45 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Pot LifePot Life
24 hoursThermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
161 °CThermal ConductivityThermal Conductivity
0.61 W/m.KPhysical Properties
ViscosityViscosity
10,000 mPa.s
