EPIBOND 1534
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- 2-Hour Work Life
- High-Strength Aluminum Bonding
- BMS 5-126 Qualification
Product Description

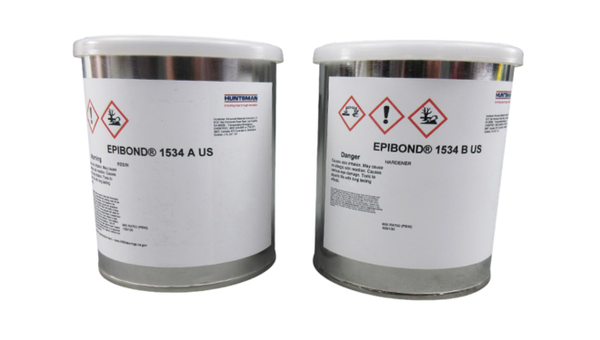

EPIBOND® 1534-A/B Epoxy Adhesive is a two-part epoxy adhesive system developed for bonding fiberglass reinforced plastics, metals, and a variety of other substrates. Qualified to Boeing BMS 5-126 Type 2, Class 1, this adhesive combines a long working life with high bond strength, making it suitable for assembly processes that require extended positioning and handling time. The mixed adhesive provides a 2-hour work life at 25°C and develops strong aluminum-to-aluminum lap shear strength after cure. EPIBOND 1534-A/B also retains useful mechanical properties after exposure to water, fuel, and hydraulic-fluid environments, supporting evaluation for aerospace and industrial bonding applications.
Key features
- BMS 5-126 qualified: Qualified to Boeing BMS 5-126 Type 2, Class 1 requirements for aerospace adhesive applications.
- Extended work life: Provides approximately 2 hours of work life at 25°C for mixing, positioning, and assembly operations.
- High structural bond strength: Achieves typical aluminum-to-aluminum lap shear strength of 3,000 psi (20.7 MPa) at 25°C after cure.
Applications / Suitable for
- Bonding fiberglass reinforced plastics (FRP).
- Bonding metal assemblies.
- Aerospace bonding applications requiring BMS 5-126 qualification.
- Industrial assemblies requiring extended working time before cure.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the adhesive components and mixed system prior to cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix Ratio | 100 : 100 | parts by weight | 1534-A resin to 1534-B hardener |
| Density | 1.05 | g/cc | Mixed adhesive, ASTM D792 |
| Viscosity | 2,000 | cP | 25°C, mixed adhesive, ASTM D2196 |
| Work Life | 2 | hours | 100 g mass at 25°C, ASTM D1338 |
| Shelf Life | 24 | months | Unopened containers at 25°C |
After-processing / final-state properties
Typical cured adhesive properties. Values are typical test results and not specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Tensile Lap Shear Strength | 3,000 | psi | Al/Al, 25°C, ASTM D1002 |
| Tensile Lap Shear Strength | 3,150 | psi | Al/Al, -55°C, ASTM D1002 |
| Tensile Lap Shear Strength | 575 | psi | Al/Al, 83°C, ASTM D1002 |
| Lap Shear After JP-4 Immersion | 2,300 | psi | 7 days at 25°C, ASTM D543 |
| Lap Shear After Hydraulic Fluid Exposure | 2,500 | psi | TT-S-735 Type III test fluid |
