EPIBOND 8543
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Fast Setting Epoxy Bonding
- 1:1 Controlled Mixing
- Paste Consistency for Bonding
Product Description

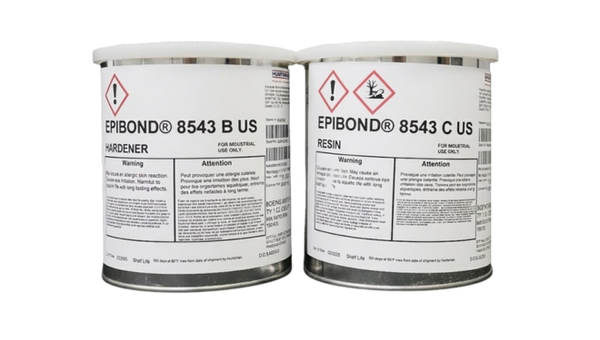

Epibond® 8543 C/B Epoxy Adhesive is a two-part, fast-setting epoxy adhesive designed for rapid repair and bonding applications, including use at lower temperatures. The system features a convenient 1:1 mix ratio and paste consistency for controlled application. At 77°F (25°C), bonded assemblies may be handled in approximately 10 minutes and develop high strength within one hour. The contrasting white resin and black hardener produce a uniform gray color when fully mixed, providing visual confirmation of proper mixing. Epibond® 8543 C/B is qualified to BMS 5-123 Type 1 Class 3 and is supplied in cartridge and bulk formats for industrial bonding and repair operations.
Key features
- Fast-setting epoxy system: Bonded parts may be handled in approximately 10 minutes at 77°F (25°C), supporting rapid repair and assembly operations.
- 1:1 mix ratio: Equal-part mixing by weight or volume simplifies dispensing and preparation.
- Visual mix verification: Contrasting component colors produce a uniform gray adhesive after complete mixing.
Applications / Suitable for
- Quick repair and bonding applications
- General industrial assembly operations
- Bonding applications requiring rapid strength development
- Repair work at ambient and cooler operating temperatures
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Typical properties of Epibond® 8543 C/B components and mixed adhesive prior to cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix Ratio | 1:1 | By volume | Resin to hardener |
| Density | 1.25 | g/cc | Mixed system, ASTM D1875, 77°F (25°C) |
| Viscosity | Paste | — | Mixed system, ASTM D2196, 77°F (25°C) |
| Gel Time | 3 | min | 20 g mass, ASTM D2471, 77°F (25°C) |
| Shelf Life | 1 | year | Stored at +2°C to +40°C in original sealed container |
After-processing / final-state properties
Typical cured adhesive properties. Values are typical results and are not specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Tensile Lap Shear Strength | 2100 | psi | ASTM D1002, Al-Al, -67°F (-55°C) |
| Tensile Lap Shear Strength | 2000 | psi | ASTM D1002, Al-Al, 77°F (25°C) |
| Tensile Lap Shear Strength | 500 | psi | ASTM D1002, Al-Al, 180°F (83°C) |
| Standard Cure | 30-60 | min | 77°F (25°C) |
