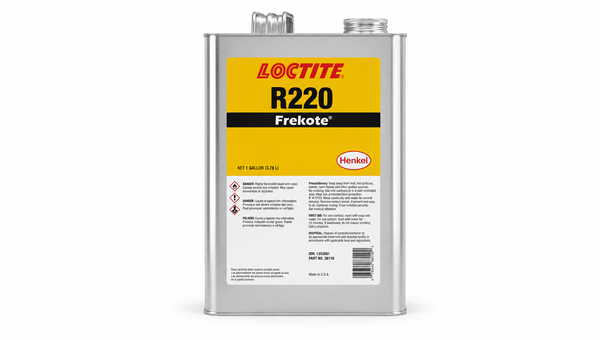

FREKOTE R-220
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- High-Slip EPDM/Elastomer Release
- 60 to 205 deg C Mold Operation
- 4-Minute 149 deg C Cure
Product Description
LOCTITE® FREKOTE® R-220 is a one-part, water-based, heat-curing mold release emulsion for demanding rubber molding processes. Its high-slip characteristics make it particularly relevant for difficult-to-release materials such as EPDM and highly filled elastomers. Applied as a finely atomized spray to a preheated mold, the product chemically bonds to the surface and forms a thin, inert, thermally stable release coating. It also supports thermoplastic urethanes and solid polyurethane cast elastomers across mold application temperatures from 60°C to 205°C.
Key features
- High-slip release performance: Formulated for difficult-to-release rubbers, including EPDM and highly filled elastomers.
- Water-based formulation: Supplied as a non-flammable, milky-white emulsion with mild odor.
- Heat-cured coating: Chemically bonds to preheated mold surfaces to form a thin, inert release layer.
- Fast application and cure: Multiple coats can be applied to the heated mold, with full cure in 4 minutes at 149°C.
- Gloss finish: Produces a gloss finish under the documented application conditions.
Applications / Suitable for
- EPDM and other difficult-to-release rubber compounds
- Highly filled elastomers
- Thermoplastic urethanes
- Solid polyurethane cast elastomers
- Preheated molds operating from 60°C to 205°C
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Documented as-supplied characteristics and application conditions for LOCTITE® FREKOTE® R-220.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Milky-white emulsion | — | As supplied |
| Chemical type | Water-based emulsion | — | One-part mold release agent |
| Odor | Mild | — | As supplied |
| Specific gravity | 0.95–1.06 | — | At 25°C; typical value range |
| pH | 3.9–4.1 | — | Typical as-supplied value |
| Application temperature | 60–205 | °C | Preheated mold surface |
| Full cure time | 25 / 10 / 4 | min | At 60°C / 93°C / 149°C, respectively |
| Optimal storage temperature | 8–21 | °C | Unopened container in a dry location |
After-processing / final-state properties
Documented characteristics of the applied and heat-cured LOCTITE® FREKOTE® R-220 release coating.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured thermal stability | ≤315 | °C | Heat-cured release coating |
| Release-film form | Thin, inert coating | — | Chemically bonded to a properly prepared, preheated mold surface |
| Finish reflection | Gloss | — | Henkel product-page technical specification |
| Release behavior | Multiple releases | — | Supplier-documented characteristic under recommended application conditions |
