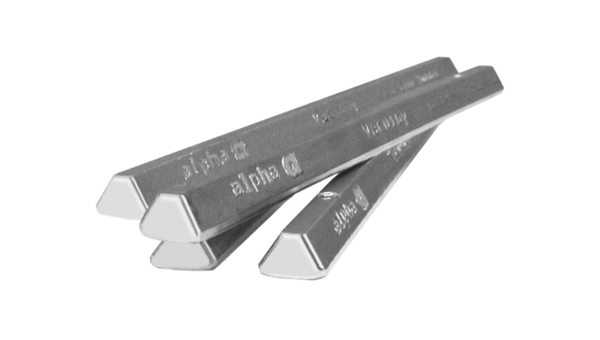

Hi-Flo Solder Bar Sn63Pb37
Harmonization Code : 3810.10.00 | Soldering, brazing or welding powders and pastes consisting of metal and other materials
Main features
- Reduced Wave-Soldering Bridging and Icicling
- Vaculoy Ultra-High-Purity Manufacturing
- Conventional or Inert-Atmosphere Wave Soldering
Product Description
ALPHA® HiFlo Sn63Pb37 Wave Solder Bar is a high-fluidity tin-lead wave solder alloy manufactured using ultra-high-purity raw materials and Alpha's proprietary Vaculoy® process. The alloy is conditioned with viscosity- and dross-lowering treatments to minimize oxides, reduce dross generation, and deliver consistent soldering performance for conventional and inert-atmosphere wave soldering systems. It is engineered to improve solder joint quality while reducing bridging, icicling, skips, and solder pot maintenance.
Key Features
- High-fluidity alloy that improves wetting while reducing bridging, icicling, and solder skips.
- Ultra-high-purity composition produced using the Vaculoy® process to minimize oxides and dross formation.
- Optimized for wave soldering in conventional and inert-atmosphere equipment, including densely populated PCB assemblies.
Applications / Suitable for
- Wave soldering of through-hole assemblies
- Wave soldering of mixed-technology PCB assemblies
- Densely populated printed circuit boards
- Fine-pitch electronic assemblies
- Conventional and inert-atmosphere wave soldering systems
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
Technical Properties
As-Supplied / Before-Processing Properties
| Property | Value | Unit | Method / Condition |
|---|---|---|---|
| Alloy | Sn63/Pb37 | — | Nominal alloy composition |
| Tin (Sn) | 62.5–63.5 | wt% | J-STD-006C / ISO 9453 |
| Lead (Pb) | Balance | wt% | J-STD-006C / ISO 9453 |
| Recommended solder pot temperature | 240–250 | °C | Wave soldering |
| Available forms | 1 kg bars, 3.5 kg feeder bars, chunks | — | Published availability |
| Manufacturing process | Vaculoy® high-purity process | — | Published product information |
