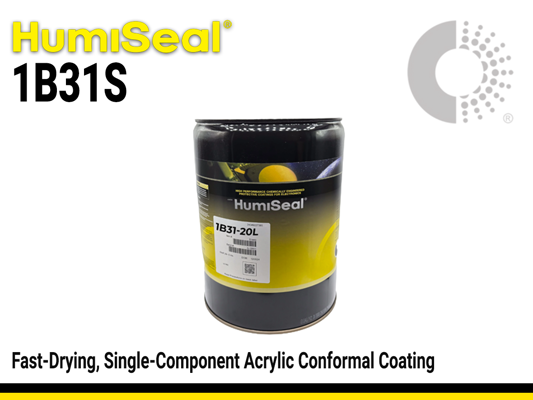

HumiSeal 1B31S Acrylic Conformal Coating
Harmonization Code : 3906909090 | Acrylic polymers in primary form Others>Others
Main features
- MIL‑I‑46058C qualified
- IPC‑CC‑830 compliant
- RoHS compliant (Directive 2002/95/EC)
Product Description
HumiSeal 1B31S is a fast‑drying, single‑component acrylic conformal coating with improved adhesion and excellent moisture and environmental protection for printed circuit assemblies. The coating offers outstanding flexibility, fluoresces under UV light for streamlined inspection, and is easily repairable. HumiSeal 1B31S is MIL‑I‑46058C qualified, IPC‑CC‑830 compliant, and RoHS Directive 2002/95/EC compliant.
Product Key Features
- Single‑component acrylic formulation
- Fast drying for efficient throughput
- MIL‑I‑46058C qualified
- IPC‑CC‑830 compliant
- RoHS compliant (Directive 2002/95/EC)
Applications
- Protection of printed circuit boards (PCBs) in consumer, industrial, automotive, and aerospace electronics
HUMISEAL 1B31S
1. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 6 weeks
Shipping in 6 weeksTDS, SDS & Technical Documents
Technical Specifications
General Properties
Density (g)Density (g)
0.91 g/cm3Film ThicknessFilm Thickness
25 - 75 µmSolidsSolids
35 %Physical Properties
ViscosityViscosity
200 mPa.sThermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
14 °COperating TemperatureOperating Temperature
-65 - 125 °CUL 94 RatingUL 94 Rating
HBElectrical Properties
Breakdown VoltageBreakdown Voltage
7500 V
