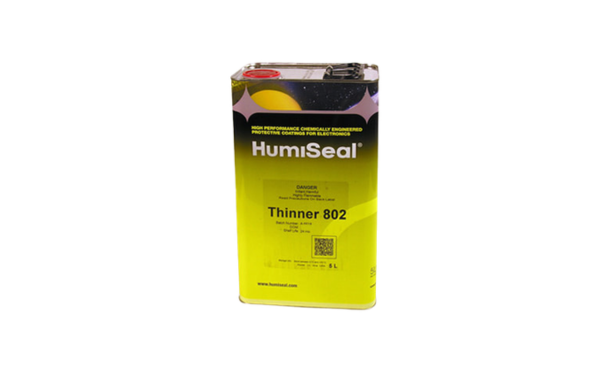

HUMISEAL 802
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- UV40 Viscosity Adjustment
- 2.78 Relative Evaporation Rate
- 24-Month Shelf Life
Product Description
HumiSeal® Thinner 802 is a proprietary solvent and diluent blend formulated for use with HumiSeal® UV40 conformal coating. It is used to lower the coating’s as-supplied viscosity or restore its original viscosity during processing while maintaining the balance of the compatible coating system. The clear liquid has a relative evaporation rate of 2.78, based on butyl acetate equal to 1, and a specific gravity of 0.86.
Key features
- UV40 compatibility: Specifically identified for use with HumiSeal® UV40 conformal coating.
- Viscosity adjustment: Supports lowering the coating’s as-supplied viscosity or restoring viscosity during processing.
- Balanced solvent blend: Formulated to maintain the original system balance when added to the compatible coating.
- Clear liquid: Supplied with a specific gravity of 0.86 and a relative evaporation rate of 2.78.
Applications / Suitable for
- Adjusting the viscosity of HumiSeal® UV40 conformal coating
- Restoring the original coating viscosity during processing
TDS, SDS & Technical Documents
Technical Specifications
General Properties
ColorColor
clearSpecific GravitySpecific Gravity
0.86Vapor DensityVapor Density
4Vapor PressureVapor Pressure
34 mmHgThermal Properties
Boiling PointBoiling Point
98 °CPhysical Properties
VOCVOC
noneAdditional Information
Technical properties
As-supplied / before-processing properties
Typical as-supplied properties. Values are not intended for use as specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Product type | Proprietary solvent and diluent blend | — | As supplied |
| Compatible coating | HumiSeal® UV40 | — | Manufacturer-identified compatibility |
| Color | Clear | — | As supplied |
| Average weight per gallon | 7.17 | lb/gal | At 20°C |
| Specific gravity | 0.86 | — | Typical value |
| Relative evaporation rate | 2.78 | — | Butyl acetate = 1 |
| Boiling point | 208 | °F | Typical value |
| Vapor pressure | 34 | mmHg | At 68°F |
| Vapor density | 4.0 | — | Air = 1 |
| VOC | None | g/L | Reported in the supplied TDS |
| Shelf life | 24 | months | From date of shipment |
