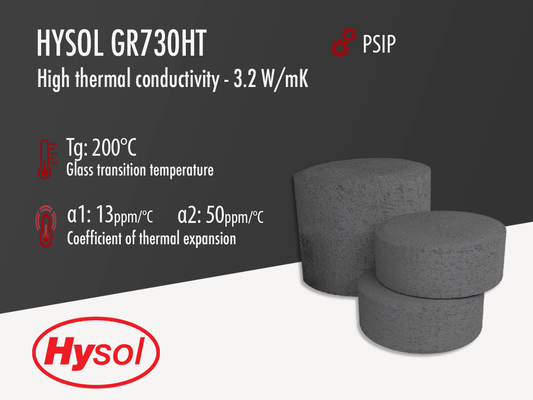

Hysol GR730HT| Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Halogen free
- High adhesion
- High thermal conductivity
Product Description
Hysol GR730HT is a halogen free, black, silica filled (90% filler weight) semiconductor grade epoxy molding compound designed for Power Supply in Package (PSIP). This low stress, low moisture absorption product is a commercial success with many uses on TO applications.
Hysol GR730HT is a black, heat curable epoxy molding compound that can be used in semiconductor packages such as TO252. Furthermore, it meets UL 94 V-0 flammability at 1/8 inch thickness.
HYSOL GR730HT
1. Select Product Form
2. Select Pellet Size
3. Select Pellet Weight
4. Select Package Size
Catalog Product
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Product availability
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeksTechnical Specifications
General Properties
ColorColor
BlackFiller ContentFiller Content
90 %Specific GravitySpecific Gravity
2.84Electrical Properties
Volume ResistivityVolume Resistivity
8000000000000000 Ohms⋅cmChemical Properties
Moisture absorptionMoisture absorption
0.24 %Thermal Properties
Glass Transition Temperature (Tg)Glass Transition Temperature (Tg)
200 °CThermal ConductivityThermal Conductivity
3.2 W/m.KPhysical Properties
Spiral Flow @ 175°CSpiral Flow @ 175°C
76 cmAdditional Information
| Property | GR730HT (86W9HT) | GR730HT (96G18) | XX-G1250S X5HT | XX-G3000HT |
| Filler content | 90 | 90 | 86 | 87 |
| Epoxy | Modified Multi functional type |
Hydrophobic EP | Modified Multi functional type |
Hydrophobic EP |
| Spiral Flow (inch) | 76 | 86 | 120 | 120 |
| Gel time (s) | 20 | 30 | 30 | 35 |
| Viscosity (PaS) | 12 | 10 | 15 | 8 |
| Specific Gravity | 2.84 | 2.67 | 2.93 | 2.85 |
| CTE 1 | 13 | 13 | 14 | 15 |
| CTE 2 | 50 | 40 | 48 | 50 |
| Tg (°C) | 200 | 122 | 215 | 130 |
| Flexural Strength/Modulus, Mpa | 104/ 23000 | 122/ 24000 | 143/ 29000 | 180/ 25000 |
| Mold Shrinkage (%) | 0.14 | 0.25 | 0.12 | 0.33 |
| Moisture Absorption PCT | 0.24 | 0.24 | 0.45 | 0.35 |
| Volume Resistance (@ 150) | NA | NA | 5E12 | 5E12 |
| Volume Resistance (@ RT) | 8E15 | 7E15 | NA | NA |
| Impurity CI- | 9 | 9 | 9 | 8 |
| Thermal conductivity (W/mK) | 3.2 | 3 | 2.9 | 3 |
