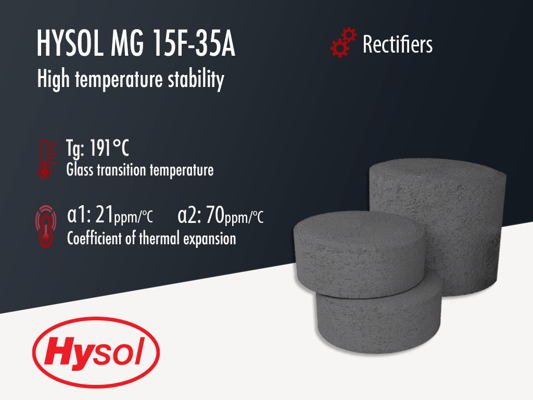

Hysol MG15F-35A | Black Epoxy Mold Compound
Harmonization Code : 3907.30.00.85 | Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
- Anhydride cured
- Tg: 190°C
- For high voltage & high power discretes
Product Description
Hysol MG 15F-35A epoxy molding compound delivers outstanding performance and ease of use. It is an anhydride cured molding compound designed specifically for use in high voltage power applications requiring good electrical stability at high temperature.
Hysol MG 15F-35A is a heat curable epoxy with good electrical and high temperature stability, typicall used for power discrete and high voltage rectifiers. It meets UL 94 V-0 Flammability at 3mm thickness.
HYSOL MG15F-35A
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
