LAIRD MF-117
Harmonization Code : 3824.99.92.97 | Prepared binders for foundry molds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included: other : other : other
Main features
- Machinable RF Component Stock
- 2.8 to 119 dB/cm Attenuation
- Sheets, Rods and Bars
Product Description

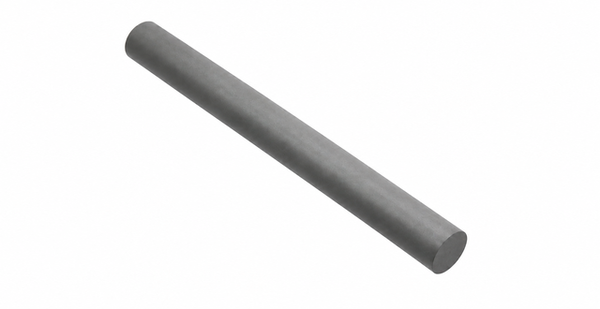

Eccosorb MF-117 Machinable RF Absorber Stock is rigid, magnetically loaded epoxy stock for machining RF and microwave absorbers, attenuators, and terminating elements. The material can be formed into stepped or tapered geometries for waveguide, coaxial, and stripline designs, allowing component dimensions to be refined during prototype evaluation. Standard MF stock is offered as sheets, rods, and bars, while typical MF-117 attenuation rises from 2.8 dB/cm at 1 GHz to 119 dB/cm at 18 GHz. Applications include terminations, attenuating elements, simple RF filters, antenna elements, and selected magnetic components.
Key features
- Machinable Magnetic Epoxy: Rigid stock can be cut and shaped into application-specific RF and microwave components.
- Multiple Stock Geometries: Sheets, rods, and bars support tapered, stepped, and compact component designs.
- Frequency-Dependent Attenuation: Typical MF-117 attenuation increases substantially from 1 GHz through 18 GHz.
Applications / Suitable for
- Waveguide, coaxial, and stripline terminations
- RF and microwave attenuating elements
- RF filters, antenna elements, and selected magnetic components
TDS, SDS & Technical Documents
Technical Specifications
Thermal Properties
General Properties
Chemical Properties
Additional Information
As-supplied / before-processing properties
Standard Eccosorb MF stock forms and dimensions for machining MF-117 RF components.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Construction | Magnetically loaded epoxy | Rigid machinable MF stock | |
| Standard stock forms | Sheets, rods, and bars | Standard availability | |
| Standard sheet size | 30.5 x 30.5 | cm | Eccosorb MF sheets |
| Sheet thickness range | 0.32 to 7.62 | cm | Standard listed thicknesses |
| Rod length | 30.5 | cm | Standard rods |
| Rod diameter range | 0.32 to 7.62 | cm | Standard listed diameters |
After-processing / final-state properties
Typical Eccosorb MF series physical data and MF-117 attenuation values; installed performance depends on machined geometry and assembly design.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Frequency range | Greater than 1 | GHz | Typical Eccosorb MF series |
| Service temperature | Less than 180 | deg C | Typical Eccosorb MF series |
| Thermal conductivity | 1.44 | W/(m K) | Typical Eccosorb MF series |
| Attenuation at 1 GHz | 2.8 | dB/cm | Typical MF-117 electrical properties |
| Attenuation at 3 GHz | 11.0 | dB/cm | Typical MF-117 electrical properties |
| Attenuation at 8.6 GHz | 46 | dB/cm | Typical MF-117 electrical properties |
| Attenuation at 10 GHz | 56 | dB/cm | Typical MF-117 electrical properties |
| Attenuation at 18 GHz | 119 | dB/cm | Typical MF-117 electrical properties |
