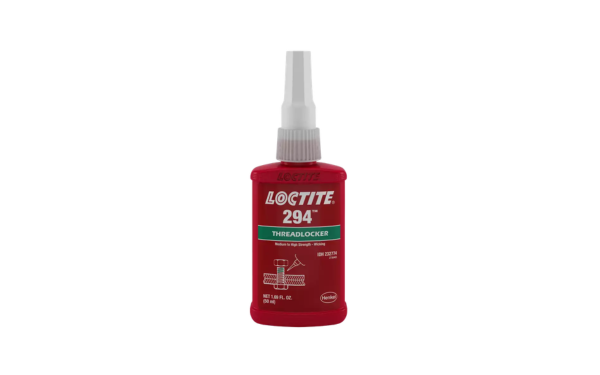

LOCTITE 294
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Wicking-Grade Thread Application
- Low-Viscosity Threadlocking Application
- High-Strength Thread Retention
Product Description
LOCTITE® 294™ is a medium-to-high-strength anaerobic threadlocking adhesive designed for the locking and sealing of pre-assembled threaded fasteners. Its low-viscosity formulation enables capillary action, allowing the adhesive to wick into engaged threads without requiring disassembly before application. The product cures when confined between closely fitting metal surfaces in the absence of air, preventing loosening and leakage caused by vibration, shock and dynamic loading. LOCTITE 294 also performs effectively on oil-coated fasteners, making it particularly suitable for maintenance, repair and production environments where disassembly is impractical.
Key Features & Benefits
- Wicking-grade threadlocker for post-assembly application.
- Low-viscosity formulation penetrates threads through capillary action.
- Medium to high locking strength for threaded fasteners.
- Prevents loosening caused by vibration, shock and dynamic loads.
- Seals threaded assemblies against leakage.
- Provides effective performance on oil-coated fasteners.
- Fluorescent under UV light for inspection and quality control.
Recommended Applications
- Post-assembly threadlocking of preassembled fasteners.
- Maintenance and repair operations.
- Locking of set screws and adjustment screws.
- Sealing of threaded assemblies against leakage.
- Equipment exposed to vibration and shock loading.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-Supplied / Before-Processing Properties
| Property | Value | Unit | Condition |
|---|---|---|---|
| Technology | Acrylic | — | Anaerobic threadlocker |
| Chemical Type | Dimethacrylate Ester | — | One-component adhesive |
| Color | Dark Green | — | Liquid |
| Fluorescence | Positive Under UV Light | — | Inspection aid |
| Strength Classification | Medium to High | — | Threadlocking adhesive |
| Specific Gravity | 1.13 | — | 25°C |
| Brookfield Viscosity | 20 - 45 | mPa·s | LVF, spindle 2, 50 rpm, 25°C |
| Viscosity Classification | Low | — | Wicking grade |
After-Processing / Final-State Properties
| Property | Value | Unit | Condition / Method |
|---|---|---|---|
| Breakaway Torque | 33 | N·m | ISO 10964, M10 zinc phosphate steel nuts and bolts, 24 h @ 22°C |
| Prevail Torque | 27 | N·m | ISO 10964, M10 zinc phosphate steel nuts and bolts, 24 h @ 22°C |
| Breakloose Torque | 38 | N·m | ISO 10964, pre-torqued to 5 N·m |
| Maximum Prevail Torque | 35 | N·m | ISO 10964, pre-torqued to 5 N·m |
| Thermal Conductivity | 0.173 | W/(m·K) | ISO 8302 |
| Heat Resistance | Up to 260 | °C | After heat-aging exposure |
| Chemical Resistance | Excellent | — | Resists gasoline, brake fluid, ethanol, motor oil and water/glycol mixtures |
| Oil-Tolerant Performance | Yes | — | Maintains threadlocking performance on oil-coated fasteners |
