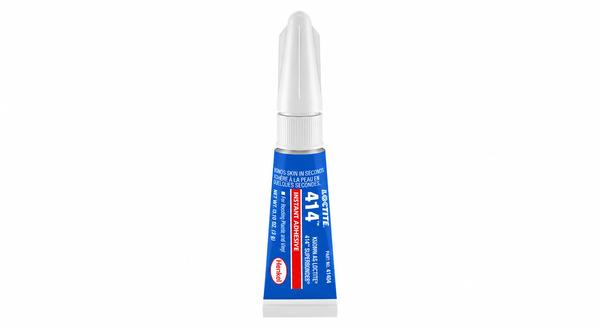

LOCTITE 414
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- Low-Viscosity General Bonding
- Fast Rubber and Plastic Fixturing
- Strong Thin-Gap Metal Bonds
Product Description
LOCTITE 414 is a one-part, low-viscosity ethyl cyanoacrylate instant adhesive for general-purpose bonding of plastics, rubbers, and metals. The transparent, colorless-to-straw liquid requires no mixing and cures with atmospheric moisture. At 22 deg C and 50% relative humidity, fixture times are under 5 seconds on neoprene and nitrile rubber, 2 to 10 seconds on aluminum, ABS, and PVC, and 15 to 30 seconds on degreased steel. After 24 hours at 22 deg C, grit-blasted steel lap shear strength is 18 to 26 N/mm^2. The adhesive performs best in thin 0.05 mm bond gaps.
Key features
- Low-Viscosity General Bonding: The liquid flows into thin, close-fitting joints on plastics, rubbers, and metals.
- Fast Rubber and Plastic Fixture: Neoprene and nitrile fixture in under 5 seconds; ABS and PVC fixture in 2 to 10 seconds.
- Strong Thin-Gap Metal Bonds: Grit-blasted steel lap shear strength reaches 18 to 26 N/mm^2 after 24 hours.
Applications / Suitable for
- General-purpose plastic bonding
- Rubber and elastomer bonding
- Thin-gap metal assembly
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Physical Properties
Electrical Properties
Curing Conditions
Additional Information
As-supplied / before-processing properties
Typical values for the uncured or as-supplied product unless otherwise noted.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Transparent, colorless to straw | - | Uncured |
| Specific gravity | 1.05 | - | 25 deg C |
| Viscosity | 70 to 110 | mPa s | Cone and plate, shear rate 3,000 s^-1, 25 deg C |
| Viscosity | 100 to 150 | mPa s | Brookfield LVF, spindle 1, 30 rpm, 25 deg C |
After-processing / final-state properties
Typical values for the cured product under the listed methods and conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Coefficient of thermal expansion | 80 x 10^-6 | K^-1 | ISO 11359-2; cured 24 hours at 22 deg C |
| Thermal conductivity | 0.1 | W/(m K) | ISO 8302; same cure |
| Glass transition temperature | 120 | deg C | ASTM E 228; same cure |
| Dielectric breakdown strength | 25 | kV/mm | IEC 60243-1; same cure |
| Lap shear strength | 18 to 26 | N/mm^2 | Grit-blasted steel; cured 24 hours at 22 deg C |
| Lap shear strength | 11 to 19 | N/mm^2 | Etched aluminum; cured 24 hours at 22 deg C |
