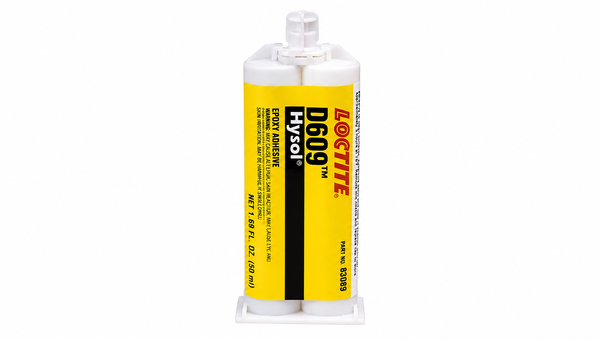

LOCTITE EA D609
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- 10-Minute Handling Time
- Self-Leveling Flowable Placement
- Fuel and Water Resistance
Product Description
LOCTITE® EA D609 is a two-part, ultra-clear epoxy adhesive for structural bonding applications requiring fast room-temperature curing. The low-viscosity, self-leveling system mixes at a 1:1 ratio by weight or volume and develops handling strength in approximately 10 minutes at 77°F. After full cure, the adhesive provides mechanical strength, electrical insulation, low shrinkage, and resistance to water, petroleum fuels, salt solutions, vapors, gases, and various organic and inorganic compounds. It is suitable for bonding supported substrates including metals, phenolic plastics, polyester, glass, ceramics, rubber, masonry, hardboard, forestry products, and other construction materials.
Key features
- Fast room-temperature cure: Develops handling strength in approximately 10 minutes at 77°F and reaches full cure after 24 hours at 77°F.
- Simple 1:1 mixing: Parts A and B mix at a 1:1 ratio by either weight or volume for cartridge or bulk application.
- Clear, electrically insulating bond: The fully cured adhesive has a dielectric strength of 415 V/mil per ASTM D149.
Applications / Suitable for
- Lower-temperature or wet industrial bonding applications
- Fast-curing structural bonding
- Bonding metals, phenolic plastics, polyester, glass, and glass fabrics
- Bonding ceramics, rubber, masonry, hardboard, and forestry products
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the separate components and mixed adhesive before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Clear | — | Part A, Part B, and mixed adhesive |
| Viscosity | 11,000–19,000 | cP | Part A and Part B; method and temperature not stated |
| Mix ratio by weight | 1:1 | — | Part A to Part B |
| Mix ratio by volume | 1:1 | — | Part A to Part B |
| Pot life | 5 | min | Mixed adhesive; 20 g at 77°F |
After-processing / final-state properties
Typical properties of LOCTITE® EA D609 after cure under the stated conditions.
| Property | Typical value | Unit | Method / condition |
|---|---|---|---|
| Tensile strength | 4,200 | psi | ASTM D638 |
| Hardness | 75 | Shore D | Method not stated |
| Dielectric strength | 415 | V/mil | ASTM D149 |
| Shear strength | 1,800 | psi | ASTM D1002; etched aluminum; cured 24 hours at 77°F; tested at 77°F |
| Full cure | 24 | hours | At 77°F |
