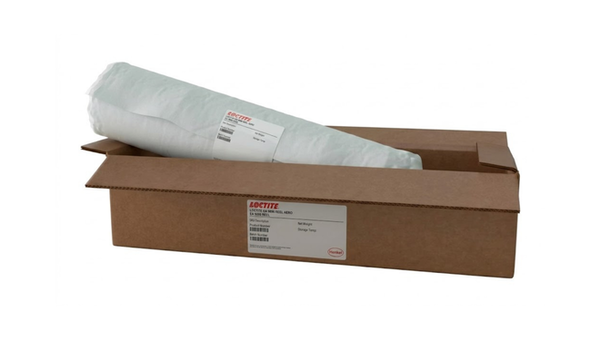

LOCTITE EA9690.030NW
Harmonization Code : 3214.10.00 | Putty and other mastics | Resin cements, caulking compounds and other mastics
Main features
- High-Peel Structural Bonding
- Low-Flow Film Placement
- Thin Non-Woven Film Handling
Product Description
LOCTITE EA 9690.030NW AERO is a 0.030 lb/sf non-woven-supported modified epoxy film adhesive for aerospace structural bonding. The low-flow film is used where high peel capability and controlled adhesive placement are important in metal, composite and honeycomb assemblies. Its preformed construction supports repeatable lay-up without liquid component mixing, while the non-woven carrier defines the specified .030NW format. The grade is suited to thin supported adhesive layers in structural panels and sandwich constructions processed within the specified cure schedule.
Key features
- High-peel film performance: The modified epoxy film is positioned for structural bonds requiring high peel capability.
- Low-flow placement: The low-flow construction supports controlled adhesive placement during lay-up.
- .030NW supported format: The 0.030 lb/sf film uses a non-woven carrier for the specified variant.
Applications
Applications include aerospace metal, composite and honeycomb structural bonding where the .030NW configuration is specified.
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied properties
Configuration-specific values for the .030NW film.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Film weight | 0.030 | lb/sf | Specified .030NW configuration |
| Support carrier | Non-woven | NW variant | |
| Flow behavior | Low-flow | Preformed modified epoxy film |
