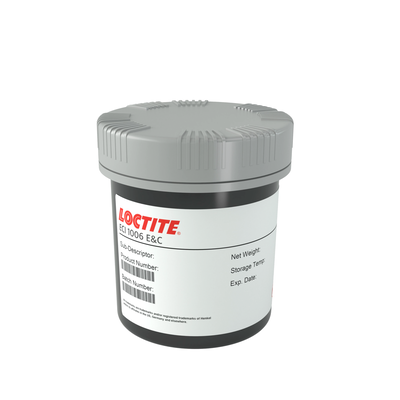

LOCTITE ECI 1006 E&C
Harmonization Code : 32159090 | Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
- Halogen free
- High conductivity
- Fine line screen printable
Product Description
LOCTITE ECI 1006 E&C is a halogen-free, conductive silver ink with a very high viscosity. Therefore it is suitable for fine line printing (50 µm line/spacing possible), offering good adhesion when being printed onto polyester foil and ITO.
LOCTITE ECI 1006 E&C is suitable for screen printing and is often used for printing circuits on flexible substrates to create touch screens, EL-lamps and solar cells.
Drying cycle
- 10 minutes @ 130°C
LOCTITE ECI1006
Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 12 weeks
Shipping in 12 weeks
Shipping in 30 daysTDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
DIRECTIONS FOR USE
1. Surface Preparation
- No surface treatment is needed for ITO or etched ITO substrates.
2. Mixing/Dilution
- Mix thoroughly before use to ensure it is homogenous.
- Avoid rapid stirring, as this causes air entrapment.
- If needed, the ink can be diluted with up to 1 to 2% by weight maximum with DBE (dibasic ester). The solvent should be mixed in thoroughly, including scraping the sides of the container, for over a minute until it is homogenous and streak free.
3. Application
- LOCTITE ECI 1006 E&C is designed for fine line screen printing application.
- Recommended screen and printing parameters are:
Stainless Steel Screen, mesh 400
Emulsion Thickness , µm 10 to 12
Polyurethane Squeegee, durometer D90
Print Speed, in/sec 7 to 10
Snap-off Distance, mils 50 to 80
