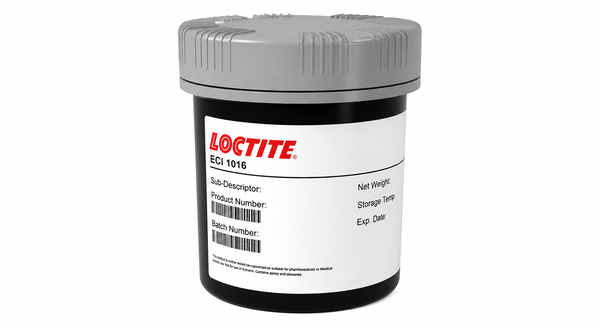

LOCTITE ECI1016
Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium
Main features
- High-Speed Rotary Screen Printing
- Low-Resistance Silver Conductive Traces
- Two-Minute Hot-Air Drying
Product Description
LOCTITE ECI 1016 EC is a low-viscosity, silver-filled thermoplastic conductive ink for high-speed roll-to-roll rotary screen printing. The gray paste contains 68% solids and is formulated for printed antennas and conductive circuits on PET or paper. The recommended hot-air drying cycle is 2 minutes at 150 deg C. After drying, the ink has 5B cross-cut adhesion on untreated PET and sheet resistance of 0.0065 ohm/sq/25 um after 10 minutes at 150 deg C. The dried material has a maximum operating temperature of 105 deg C.
Key features
- High-speed rotary printing: Low viscosity supports roll-to-roll rotary screen application.
- Low-resistance silver traces: The dried film reaches 0.0065 ohm/sq/25 um under the documented condition.
- Rapid hot-air drying: The recommended guideline cycle is 2 minutes at 150 deg C.
Applications
Applications include RFID antennas, printed antennas and conductive circuits on PET or paper.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied properties
Typical values for the undried conductive ink.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | Gray paste | As supplied | |
| Filler type | Silver | Conductive filler | |
| Solids content | 68 | % | Undried material |
| Density | 2.6 | g/ml | Undried material |
| Viscosity | 7,300 | mPa s | Rheometer, 1.5 s^-1, 25 deg C |
| Thixotropic index | 1.7 | 15/1.5 s^-1 | |
| Theoretical coverage | 8 | m^2/kg | At 10 um dry coating thickness |
| Shelf life | 365 | days | At 2 to 8 deg C |
Final-state properties
Typical dried-film properties under the stated conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Maximum operating temperature | 105 | deg C | Dried material |
| Adhesion on untreated PET | 5B | grade | Cross-cut test |
| Sheet resistance | 0.0065 | ohm/sq/25 um | 4-point probe after 10 minutes at 150 deg C |
