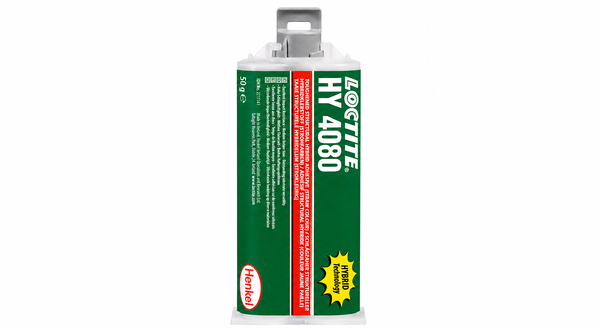

LOCTITE HY4080
Harmonization Code : 3214.10.00 | Putty and other mastics | Resin cements, caulking compounds and other mastics
Main features
- Equal-Volume Hybrid Mixing
- 10-Minute Fixture on Metals
- Tough Peel and Impact Performance
Product Description
LOCTITE HY 4080 is a two-component cyanoacrylate/acrylic hybrid structural adhesive for metals, composites and plastics. Clear-to-slightly-hazy Part A and white-to-off-white Part B mix at 1:1 by volume to form an opaque, slightly yellow adhesive. The high, thixotropic formulation has a 10 minute open time at 25 deg C and typically fixtures in 10 minutes on 0.05 mm gaps in grit-blasted mild steel or aluminum. After one week at 22 deg C, the cured adhesive reaches Shore D 72 hardness and 80% elongation at break, with peel, impact and lap-shear performance on specified substrates.
Key features
- 1:1 cartridge mixing: Equal-volume components support dispensing through a supplied mixer head.
- 10-minute fixture time: The adhesive typically fixtures in 10 minutes on 0.05 mm steel or aluminum gaps.
- Tough cured response: The cured hybrid provides peel, impact and shear performance on the stated substrates.
Applications
Applications include structural bonding of metals, composites and plastics where a high-viscosity hybrid adhesive is specified.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Curing Conditions
Thermal Properties
Additional Information
As-supplied properties
Part A, Part B and mixed-system values before cure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A appearance | Clear to slightly hazy | Cyanoacrylate component | |
| Part B appearance | White to off-white paste | Methacrylate component | |
| Mixed appearance | Opaque to slightly yellow | After 1:1 volume mixing | |
| Mix ratio by volume | 1:1 | Part A to Part B | |
| Part A specific gravity | 1.06 to 1.11 | g/cm^3 | Typical uncured value |
| Part A viscosity | 4,000 to 11,000 | mPa s | Cone and plate, 100 s^-1, 25 deg C |
| Part B viscosity | 45,000 to 75,000 | mPa s | Cone and plate, 20 s^-1, 25 deg C |
| Open time | 10 | minutes | On-part life at 25 deg C |
Final-state properties
Typical cured-material and bonded-joint values after 1 week at 22 deg C unless otherwise stated.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Glass transition temperature | 48 to 76 | deg C | ISO 11359-2; cured 1 week at 22 deg C |
| Shore hardness | 72 | Shore D | ISO 868; cured 1 week at 22 deg C |
| Tensile strength at break | 11.3 | N/mm^2 | ISO 527-3; cured 1 week at 22 deg C |
| Tensile modulus | 355 | N/mm^2 | ISO 527-3; cured 1 week at 22 deg C |
| Elongation at break | 80 | % | ISO 527-3; cured 1 week at 22 deg C |
| Impact strength | 4.1 | kJ/m^2 | ISO 9653; cured 1 week at 22 deg C |
| T-peel strength | 7.0 | N/mm | ISO 11339, grit-blasted steel; cured 1 week at 22 deg C |
| Lap shear strength | 25.6 | N/mm^2 | Grit-blasted mild steel; cured 1 week at 22 deg C |
