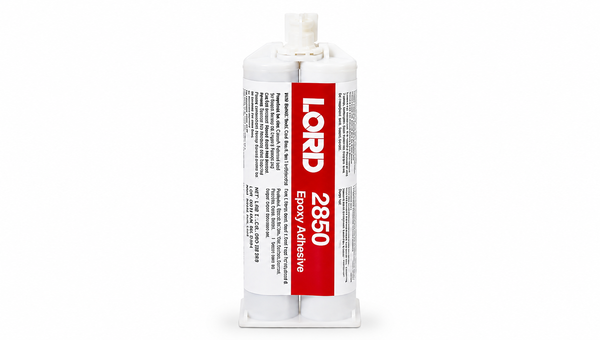

LORD 2850
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- 62.1 MPa Compressive Strength
- Low-Outgassing 0.01% CVCM
- Trowel or Injection Application
Product Description
LORD® 2850-A/2850-B Syntactic Foam is a two-component modified epoxy syntactic foam with a smooth, creamy consistency suited to trowel and injection application. The mixed material forms a green, thixotropic paste used to reinforce honeycomb cores and other hollow structures. After cure, it combines high compressive strength with low weight relative to volume and supports service temperatures from -320°F to 225°F (-196°C to 107°C).
Key Features
- High cured compressive strength of 9000 psi (62.1 MPa) at room temperature and 12,000 psi (82.7 MPa) at -320°F (-196°C).
- Low-outgassing cured performance with 0.98% total mass loss and 0.01% collected volatile condensable materials per ASTM E595.
- Application-friendly mixed consistency suitable for injection or spatula application, with a 30-minute working time at 77°F (25°C).
Applications / Suitable for
- Reinforcement of honeycomb cores
- Reinforcement of hollow structures
- Aerospace structures requiring low-outgassing syntactic foam
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Thermal Properties
Additional Information
As-Supplied / Before-Processing Properties
Typical component and mixed properties. Values are typical and are not intended for specification purposes.
| Property | 2850-A Component | 2850-B Component | Mixed | Method / Condition |
|---|---|---|---|---|
| Appearance | Yellow paste | Blue liquid | Green paste | Typical |
| Viscosity | Thixotropic | 50 cP | Thixotropic | Typical |
| Density | 5.0–5.8 lb/gal (600–695 kg/m³) |
7.8–8.3 lb/gal (940–1000 kg/m³) |
5.3–5.8 lb/gal (640–700 kg/m³) |
Typical |
| Flash Point | >257°F (>125°C) |
>257°F (>125°C) |
>257°F (>125°C) |
Typical |
| Mix Ratio | 100 parts | 8 parts | 100:8 | By weight; thoroughly stir 2850-B before mixing |
| Working Time | — | — | 30 minutes | At 77°F (25°C) |
| Time to Handling Strength | — | — | 1 hour | Typical |
| Shelf Life | 6 months | 6 months | — | Store at 68–86°F (20–30°C) in a clean, dry environment in original, unopened containers |
After-Processing / Final-State Properties
Typical cured properties. The recommended cure is 24 hours at 77–86°F (25–30°C). Values are typical and are not intended for specification purposes.
| Property | Value | Unit | Method / Condition |
|---|---|---|---|
| Compressive Strength | 9000 (62.1) |
psi (MPa) |
At room temperature |
| Compressive Strength | 12,000 (82.7) |
psi (MPa) |
At -320°F (-196°C) |
| Tensile Shear Strength | 2500 (17.2) |
psi (MPa) |
At room temperature |
| Tensile Shear Strength | 1800 (12.4) |
psi (MPa) |
At -320°F (-196°C) |
| Total Mass Loss | 0.98 | % | ASTM E595 |
| Collected Volatile Condensable Materials | 0.01 | % | ASTM E595 |
| Service Temperature Range | -320 to 225 (-196 to 107) |
°F (°C) |
Documented performance range |
