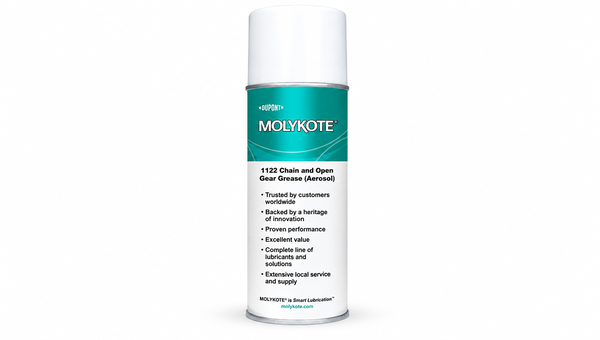

MOLYKOTE 1122
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- High-Viscosity Lubricant Formulation
- Robust High-Pressure Resistance and Wear Protection
- High-Temperature Lubrication Protection
Product Description
MOLYKOTE® 1122 Chain and Open Gear Grease is a high-performance synthetic grease formulated with a very high viscosity base oil (1,500 mm²/s at 40°C), an inorganic thickener, solid lubricants, and a specialized adhesion improver. Designed to be extremely adhesive and water-resistant, this black paste excels in lubricating slow-moving, heavily loaded sliding bearings, open gears, and chains equipped with hollow pins. It contains no intentional PTFE or PFAS and is engineered to provide emergency lubrication and exceptional wear protection under extreme pressures.
Key features
- Extreme adhesion and water resistance: The specialized adhesion improver ensures the grease remains precisely where applied, providing robust resistance against water washout in challenging environments.
- High load and wear protection: Exhibits a high four-ball weld load of 2,600 N and an Almen Wieland OK load of 18,000 N, offering superb high-pressure resistance and emergency lubrication.
- Reliable operation at elevated temperatures: Maintains strong lubricating properties over a service temperature range of 10°C to 160°C.
Applications / Suitable for
- Initial and ongoing lubrication of chains with hollow pins equipped with grease nipples, such as tenter clamp chains and food sterilizer conveyor chains
- Open gears and gear drives
- Sliding bearings operating at low speeds and high temperatures (e.g., drying systems, calendering machines)
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Synthetic oil, solid lubricants, inorganic thickener, adhesion improver | - | Contains molybdenum sulfide, graphite, and talc |
| Physical State / Appearance | Black | - | Paste |
| Base Oil Viscosity | 1,500 | mm²/s | at 40°C |
| Unworked Penetration | 250-280 | - | - |
| Density | 0.95 | g/ml | at 20°C |
| Flash Point | > 200 | °C | Pensky-Martens closed cup |
| Usable Life (Paste/Grease) | 60 | months | Stored at or below 20°C in unopened containers |
| Usable Life (Aerosol Spray) | 24 | months | Stored between 5°C and 35°C in unopened containers |
After-processing / in-service properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service Temperature Range | 10 to 160 | °C | - |
| Four-Ball Tester Wear Scar | 0.9 | mm | Under 600 N load (DIN 51 350 pt.5) |
| Four-Ball Tester Weld Load | 2,600 | N | DIN 51 350 pt.4 |
| Almen Wieland OK Load | 18,000 | N | - |
