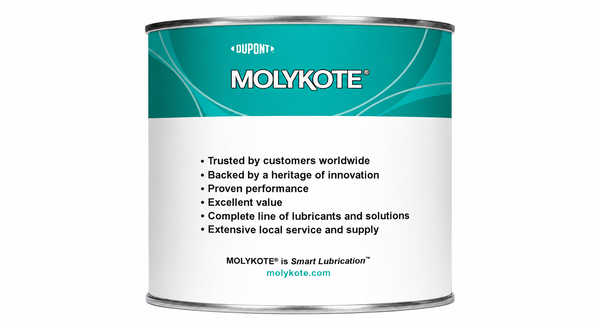

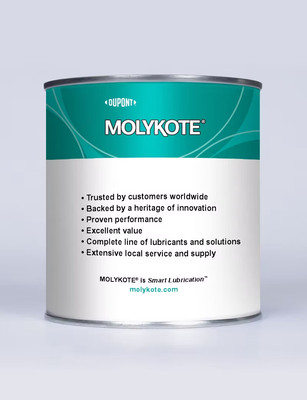

MOLYKOTE G-1023
Harmonization Code : 8473.30.80.00 | Parts and accessories (other than covers, carrying cases and the like) suitable for use solely or principally with machines of headings 8470 to 8472 ; Parts and accessories of the machines of heading 8471 ; Other; Other
Main features
- Steel/GFRP Friction Control
- -45 to 120 deg C Service
- Automatic Dispensing Compatible
Product Description
MOLYKOTE G-1023 Grease is a white PAO/lithium-soap grease for lubricating plastic-to-metal parts and steel-to-GFRP contacts. Its typical service range is -45 to 120 deg C, with 30 cSt base-oil viscosity and 280 penetration by JIS K 2220. The grease combines low friction and reduced noise at steel/GFRP interfaces and can be applied by brush, spatula, or automatic dispensing equipment. It is used on automotive slides and related plastic/metal mechanisms where the material pairing and stated temperature range match the assembly.
Key features
- Steel/GFRP Friction Control: The grease is specified for low-friction, reduced-noise contact between steel and glass-fiber-reinforced plastic.
- -45 to 120 deg C Service: The typical service-temperature range covers low-temperature starts through elevated-temperature operation.
- Brush or Automatic Application: Application methods include brush, spatula, and automatic dispensing equipment.
Applications / Suitable for
- Automotive slide mechanisms.
- Plastic-to-metal lubricated contacts.
- Steel-to-GFRP sliding interfaces.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied grease properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance | White | Typical | |
| Base-oil viscosity | 30 | cSt | Typical |
| Penetration | 280 | mm/10 | JIS K 2220; typical |
| Usable life | 36 | months | Original unopened container from date of production |
In-service performance properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service-temperature range | -45 to 120 | deg C | Typical |
| Bleed | 2.4 | % | JIS K 2220 at 100 deg C for 24 h; typical |
| Evaporation | 0.2 | % | JIS K 2220 at 99 deg C for 22 h; typical |
| Four-ball wear scar | 0.58 | mm | ASTM D2266, 1,200 rpm, 392 N, 1 h; typical |
| Starting torque | 90 | mN m | JIS K 2220 at -40 deg C; typical |
| Running torque | 30 | mN m | JIS K 2220 at -40 deg C; typical |
