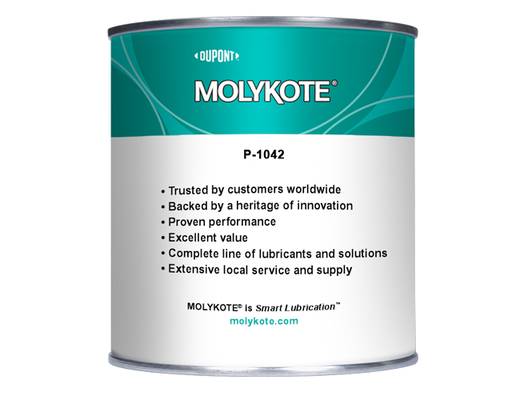

MOLYKOTE P-1042
Harmonization Code : 8473.30.80.00 | Parts and accessories (other than covers, carrying cases and the like) suitable for use solely or principally with machines of headings 8470 to 8472 ; Parts and accessories of the machines of heading 8471 ; Other; Other
Main features
- 9,000 N Weld Load
- Water-Emulsion Washout Resistance
- High-Tack Metal Surface Adhesion
Product Description
MOLYKOTE P-1042 Adhesive Grease Paste is a light-beige, lithium-soap grease paste with mineral and synthetic oils, solid lubricants, and an adhesion improver for demanding metal-to-metal sliding contacts. The NLGI 1-2 paste carries a typical 9,000 N four-ball weld load and resists washout by water and metal-machining emulsions under the stated tests. Its paste service range is -25 to 120 deg C, while the solid-lubricant portion remains functional at 500 deg C. Application methods include brush, spatula, grease gun, automatic device, and central lubrication systems.
Key features
- 9,000 N Weld Load: The four-ball weld-load result is measured by DIN 51350, Part 4.
- Water-Emulsion Resistance: Static water resistance and washout tests support use around water and metal-machining emulsions.
- High-Tack Metal Adhesion: The light-colored grease paste contains an adhesion improver for retention on metallic contact surfaces.
Applications / Suitable for
- High-pressure metal-to-metal sliding surfaces.
- Clamping tools exposed to water emulsions from metal machining.
- Harsh contacts operating under combined load, temperature, or humidity.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied paste properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Light beige | Typical | |
| NLGI class | 1-2 | DIN 51818; typical | |
| Worked penetration | 285 to 320 | mm/10 | ISO 2137; typical |
| Density | 1.28 | g/ml | ISO 2811 at 20 deg C; typical |
| Drop point | >150 | deg C | ISO 2176; test result, not a service-temperature limit |
In-service performance properties
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Paste service-temperature range | -25 to 120 | deg C | Typical |
| Solid-lubricant temperature | 500 | deg C | Solid-lubricant state |
| Initial breakaway torque | <300 x 10-3 | N m | ASTM D1478-80 at -20 deg C; typical |
| Running torque after 20 min | <100 x 10-3 | N m | ASTM D1478-80 at -20 deg C; typical |
| Four-ball weld load | 9,000 | N | DIN 51350, Part 4; typical |
| Four-ball wear scar | 0.75 | mm | DIN 51350, Part 5 under 800 N load; typical |
| Water washout | <5 | wt% | DIN 51807, Part 2 at 80 deg C for 1 h; typical |
| Emcor corrosion degree | 0-1 | DIN 51802; typical |
