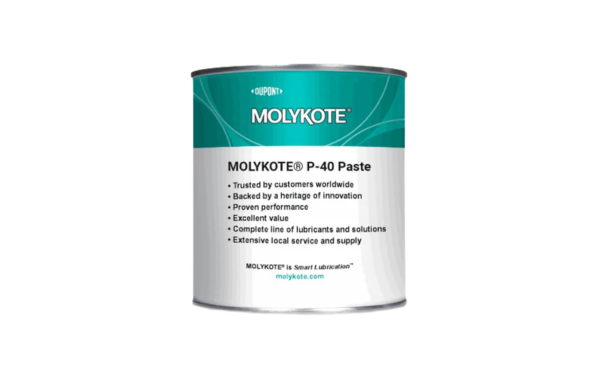

MOLYKOTE P-40
Harmonization Code : 3403.19 | Lubricating Preparations (With 70% or More Petroleum Oils) For Automotive and Other Uses
Main features
- Metal-Free Lubrication Paste
- Assembly and Continuous Lubrication
- -40 to 121 deg C Paste Service
Product Description
MOLYKOTE® P-40 (S) Paste is a metal-free adhesive lubrication paste for assembly and continuous lubrication, particularly where components are exposed to corrosive environments such as splash water or humidity. It combines adhesion with documented corrosion protection, water resistance, and anti-fretting characteristics. The paste has a service temperature range of -40 to +121°C (-40 to +250°F), while its solid lubricants are documented for -40 to +1,093°C (-40 to +2,000°F). Typical uses include threaded connections, spline shafts, bearing mounting, brake-system components, commercial-vehicle axles, cams, plain bearings, open gears, and marine applications.
Key features
- Corrosive-environment lubrication: Provides documented corrosion protection and water resistance for applications exposed to splash water or humidity.
- Assembly and continuous lubrication: Supports both assembly lubrication and continuous lubrication across a range of mechanical components.
- Broad temperature capability: Paste service range is -40 to +121°C, with solid lubricants documented from -40 to +1,093°C.
Applications / Suitable for
- Assembly and threaded connections, spline shafts, and bearing mounting
- Brake-system components, brake rods, guide bolts, commercial-vehicle axles, cams, and plain bearings
- Open gears and marine applications
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical as-supplied properties of MOLYKOTE® P-40 (S) Paste. Typical values are not intended as product specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Yellowish brown | - | Typical |
| Unworked penetration | 310-350 | mm/10 | ISO 2137 |
| Base oil viscosity | 400 | mm²/s | DIN 51 562; at 40°C (104°F) |
| Usable life | 60 | months | Original unopened container; stored between 0 and 40°C (32 to 104°F); from date of production |
After-processing / final-state properties
Typical in-service and performance properties. Test results are method-specific and should not be interpreted as universal equipment limits.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Service temperature range - as paste | -40 to +121 | °C | Equivalent to -40 to +250°F |
| Service temperature range - solid lubricants | -40 to +1,093 | °C | Equivalent to -40 to +2,000°F; applies specifically to solid lubricants |
| Weld load | 3,600 | N | DIN 51 350 pt.4; four-ball tester (VKA) |
| Wear scar | 0.72 | mm | DIN 51 350 pt.5; under 800 N load |
| Coefficient of friction - thread | 0.13 | µ | Screw test; M12 x 1.75, material 8.8, blackened |
| Corrosion protection | 0 | degree of corrosion | DIN 51 802; SKF-Emcor method |
