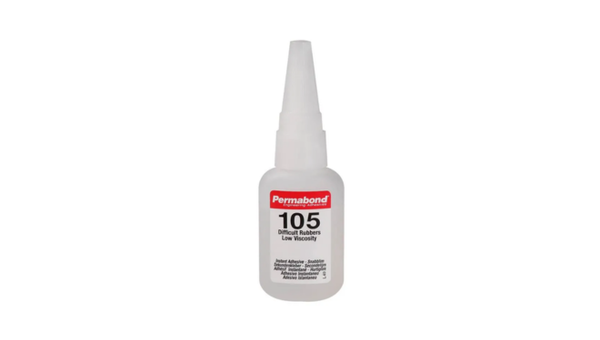

PERMABOND 105
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- 5 to 20-Second Fixture Time
- Low-Viscosity Single-Component Adhesive
- Hard-to-Bond Plastic and Rubber Bonding
Product Description
PERMABOND® 105 Cyanoacrylate Adhesive is a single-component, low-viscosity, high-purity ethyl cyanoacrylate adhesive developed for rapid bonding of hard-to-bond plastics and rubbers. Surface moisture initiates polymerization when the adhesive is pressed into a thin film between closely fitted parts. The colorless, 100% reactive formulation requires no mixing or heat cure and provides fixture or handling times of 5–20 seconds on documented substrates. Supported materials include natural rubber, Buna N rubber, EPDM, butyl rubber, ABS, PVC, polycarbonate, phenolic materials, and metals.
Key features
- Rapid fixture performance: Typical fixture or handling times range from 5–20 seconds on documented rubber, plastic, phenolic, and steel substrates.
- Low-viscosity application: A typical viscosity of 30–50 mPa·s at 25°C supports application into closely fitted joints with a maximum documented gap fill of 0.1 mm.
- Single-component formulation: The 100% reactive ethyl cyanoacrylate system requires no mixing, solvent evaporation, or heat cure.
Applications / Suitable for
- Bonding natural and synthetic rubbers, including Buna N, EPDM, and butyl rubber
- Bonding hard-to-bond plastic components
- Bonding ABS, PVC, polycarbonate, and phenolic materials
- Rapid assembly of closely fitted parts
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties and processing characteristics of PERMABOND® 105 before full cure. Values are guideline information and do not constitute a specification.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical composition | Ethyl cyanoacrylate | — | As supplied |
| Appearance | Colorless | — | As supplied |
| Viscosity | 30–50 | mPa·s (cP) | At 25°C |
| Specific gravity | 1.1 | — | Typical |
| Maximum gap fill | 0.1 (0.004) | mm (in) | Closely fitted bonded joint |
| Fixture / handling time | 5–20 | seconds | 0.3 N/mm² shear strength achieved; substrate-dependent |
| Full-strength time | 24 | hours | Temperature, humidity, substrate, surface acidity, and gap can affect cure speed |
After-processing / final-state properties
Typical properties and substrate-specific performance of the cured adhesive. Strength results vary with surface preparation and joint gap and do not constitute specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shear strength on steel | 18–22 (2,600–3,200) | N/mm² (psi) | ISO 4587 |
| Shear strength on aluminum | 6–8 (900–1,200) | N/mm² (psi) | ISO 4587 |
| Shear strength on PVC | >10 (>1,400) | N/mm² (psi) | ISO 4587; substrate failure |
| Shear strength on phenolic | 12–14 (1,700–2,000) | N/mm² (psi) | ISO 4587 |
| Impact strength | 3–5 (1.4–2.4) | kJ/m² (ft·lb/in²) | ASTM D950 |
| Hardness | 85 | Shore D | ISO 868 |
| Dielectric strength | 25 | kV/mm | Typical cured-material property |
| Thermal conductivity | 0.1 | W/(m·K) | Typical cured-material property |
