PERMABOND 130UV
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Rapid UV Bonding Cure
- 200 mPa s Application Viscosity
- Under 405 Nm LED Conditions
Product Description

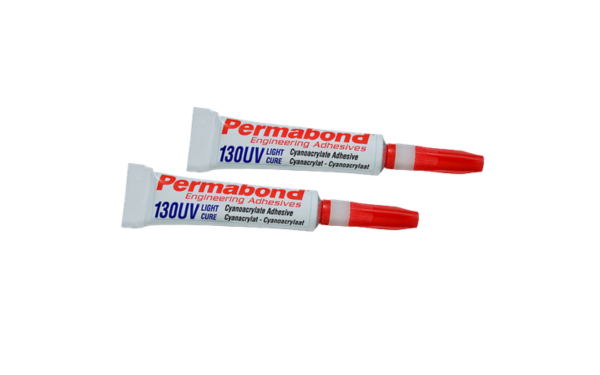

PERMABOND® 130UV Light Cure Cyanoacrylate Adhesive is a low-viscosity, solvent-free, dual-cure adhesive designed for rapid bonding of metals and plastics. It combines conventional moisture-initiated cyanoacrylate curing with UV-light curing, allowing exposed adhesive fillets to become tack-free in seconds while small shadowed areas continue to cure through ambient moisture. The adhesive is yellow before cure and becomes clear in a thin bondline. At 25 °C, its 200 mPa·s viscosity supports controlled dispensing, accurate alignment, and automated application. Depending on the substrate, moisture-cure fixture times range from approximately 3 to 80 seconds, while UV exposure at 405 nm can produce a tack-free surface in 1–5 seconds under the documented lamp conditions.
Key features
- Dual-cure technology: UV light rapidly cures exposed fillets, while moisture curing supports polymerization in small shadow areas.
- Fast tack-free performance: Achieves a tack-free surface in ≤1 second at 150 mW/cm² or ≤5 seconds at 25 mW/cm² using a 405 nm spot LED.
- Reduced bloom and odor: Designed to minimize blooming and improve the finished appearance of transparent or exposed joints.
Applications / Suitable for
- Bonding opaque substrates with exposed adhesive fillets
- Bonding through transparent plastic components
- Automated adhesive dispensing
- Metal and plastic assembly
- Applications requiring rapid UV cure with secondary shadow-area cure
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Typical uncured and curing properties. Values are guideline information and do not constitute product specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical composition | Ethyl cyanoacrylate | — | Single-component, dual-cure adhesive |
| Appearance | Yellow before cure; clear in a thin bondline | — | Fluoresces under UV light |
| Viscosity | 200 | mPa·s | At 25 °C; equivalent to cP |
| Specific gravity | 1.1 | — | Typical uncured value |
| Moisture fixture time — NBR | 3 | s | 22 °C and 50% relative humidity |
| Moisture fixture time — steel | 30 | s | 22 °C and 50% relative humidity |
| Moisture fixture time — polycarbonate | 40 | s | 22 °C and 50% relative humidity |
| UV tack-free time | ≤1 | s | 405 nm spot LED at 150 mW/cm² |
| UV tack-free time | ≤5 | s | 405 nm spot LED at 25 mW/cm² |
After-processing / final-state properties
Typical cured performance values. Unless otherwise stated, shear values are based on a 24-hour moisture cure. Results vary with substrate, preparation, bondline, and UV exposure.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Shear strength — abraded mild steel | 12–17 | N/mm² | ISO 4587; 24-hour moisture cure; equivalent source range 1,740–2,465 psi |
| Shear strength — stainless steel | 14–19 | N/mm² | ISO 4587; 24-hour moisture cure |
| Shear strength — aluminum | 5–9 | N/mm² | ISO 4587; 24-hour moisture cure |
| Shear strength — polycarbonate | 6–10 | N/mm² | ISO 4587; 24-hour moisture cure |
| Shear strength — PMMA | 7–11 | N/mm² | ISO 4587; 24-hour moisture cure |
| Shear strength — PVC | 8–12 | N/mm² | ISO 4587; 24-hour moisture cure |
| Hardness | 70–80 | Shore D | ISO 868 |
| Biocompatibility | Cytotoxicity tested | — | ISO 10993-5; claim requires compliance review |
