PERMABOND 920
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Post-Cured Service up to 250 deg C
- 15 to 20-Second Steel Fixture
- MIL-A-46050C Type V Class 2 Compliance
Product Description

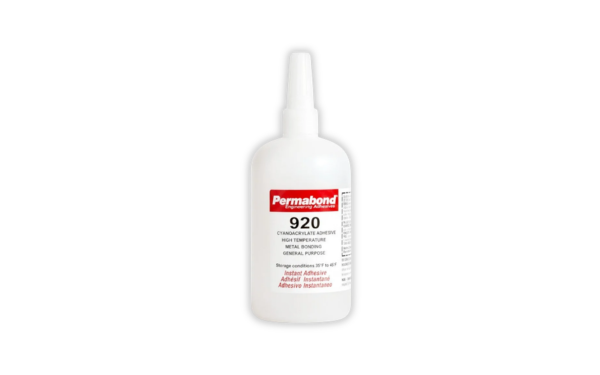

Permabond® 920 Cyanoacrylate is an allyl-based, low-viscosity adhesive explicitly designed to deliver extreme high-temperature resistance alongside rapid, high-strength bonding. This 100% reactive, solvent-free liquid cures quickly at room temperature but features a unique secondary curing mechanism that is activated by heat. When subjected to a proper post-curing schedule at 150°C (302°F), the adhesive forms exceptionally resilient bonds capable of withstanding environmental temperatures up to 250°C (482°F).
Key features
- Extreme temperature resistance: Secondary thermal curing allows bonded assemblies to reliably withstand continuous temperatures up to 250°C (482°F).
- Fast setting: Delivers fixture handling times of 15-20 seconds on steel and 10-15 seconds on rubbers and phenolics at room temperature.
- Medical and military approved: Approved to MIL-A-46050C Type V Class 2 specifications for existing designs and has successfully passed Cytotoxicity testing.
Applications / Suitable for
- Assemblies exposed to extreme high-temperature environments (up to 250°C after post-cure)
- Bonding metals, including steel, aluminum, and zinc
- Medical devices and military applications requiring specific approvals
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Thermal Properties
Electrical Properties
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Allyl cyanoacrylate | - | - |
| Appearance | Colorless | - | Liquid |
| Viscosity | 80 | cP | at 25°C (mPa.s) |
| Specific Gravity | 1.1 | - | - |
| Maximum Gap Fill | 0.15 | mm | (0.006 in) |
| Flash Point | 95 | °C | - |
| Volatile Organic Compound | < 2 | % | 20 g/L (Estimated) |
After-processing / final-state properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Fixture/Handling Time | 15-20 | seconds | Steel |
| Full Strength | 24 | hours | - |
| Shear Strength | 19-23 | N/mm² | Steel (ISO 4587) (2800-3300 psi) |
| Impact Strength | 3-5 | kJ/m² | ASTM D-950 (1.4-2.4 ft-lb/in²) |
| Hardness | 85 | Shore D | ISO 868 |
| Coefficient of Thermal Expansion | 90E-6 | mm/mm/°C | - |
| Coefficient of Thermal Conductivity | 0.1 | W/(m.K) | - |
| Post-Cured Temperature Resistance | 250 | °C | (482°F) after thermal activation |
