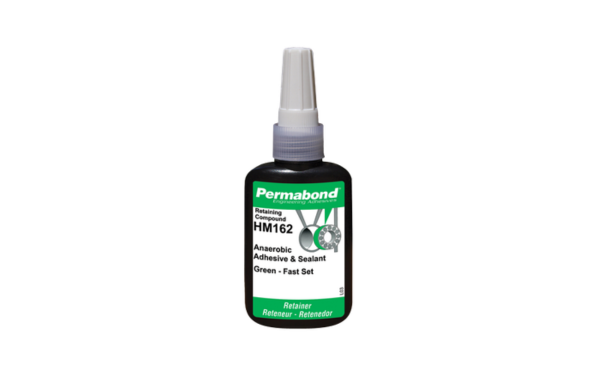

PERMABOND HM-162
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- 5-Minute Steel Handling Time
- 30 MPa Shear Strength
- High-Temperature Chemical Resistance
Product Description
Permabond® HM162 is a medium-viscosity anaerobic retaining compound that cures rapidly when confined between close-fitting metal parts. Engineered to form an extremely tough bond, it excels in applications involving cylindrical parts where very high strength and improved fatigue life are paramount. In its uncured state, the liquid adhesive wets out metal surfaces perfectly, keying into surface irregularities and effectively filling the space between mated components.
Key features
- Rapid curing: Achieves handling strength on steel in just 5 minutes at room temperature, significantly accelerating assembly processes.
- Superior performance: Delivers very high shear strength (30 MPa) and improved fatigue life, ensuring durable bonds under high stress.
- High temperature resistance: Specially formulated to maintain excellent bond strength and integrity in elevated temperature environments.
Applications / Suitable for
- Retaining and sealing cylindrical metal parts (up to 0.2 mm gap)
- Assemblies requiring improved fatigue life and high shear strength
- Applications operating in high-temperature or chemically harsh environments
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Other Properties
Electrical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical Composition | Acrylic | - | - |
| Appearance | Green | - | Liquid |
| Viscosity | ~ 1,000 | mPa.s (cP) | at 23°C - 25°C |
| Specific Gravity | 1.1 | - | - |
| Maximum Gap Fill | 0.2 | mm | (0.008") |
| UV Fluorescence | Yes | - | - |
| Flash Point | > 100 | °C | - |
After-processing / final-state properties
Typical properties; these values are not intended for use in preparing specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Handling Strength Time | 5 | minutes | M10 steel at 23°C |
| Working Strength Time | 1-3 | hours | M10 steel at 23°C |
| Full Strength Time | 24 | hours | M10 steel at 23°C |
| Breakaway Torque Strength | 32 | N-m | M10 steel (ISO 10964) (280 in.lb) |
| Prevailing Torque Strength | 57 | N-m | M10 steel (ISO 10964) (510 in.lb) |
| Shear Strength | 30 | MPa | Steel collar & pin (ISO 10123) (4300 psi) |
| Coefficient of Thermal Expansion | 90E-6 | mm/m/°C | - |
| Dielectric Strength | 11 | kV/mm | - |
| Thermal Conductivity | 0.19 | W/(m.K) | - |
