3M DP604NS
Harmonization Code : 3919.10.80 | Other self-adhesive plastic rolls not exceeding 20 cm wide.
Main features
- 4-Minute Open Time
- 1:1 Meter-Mix Processing
- 51 to 121 deg C Service Range
Product Description

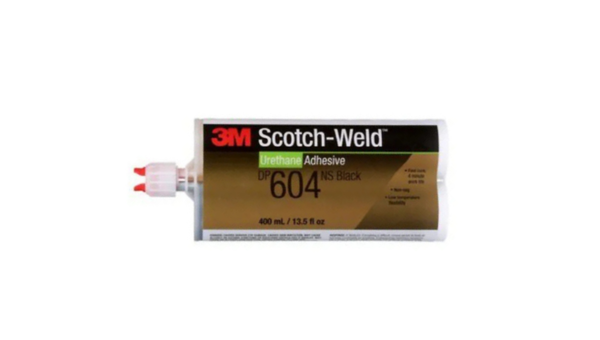

3M™ Scotch-Weld™ Urethane Adhesive DP604NS Black is a rapid-setting, two-component polyurethane adhesive supplied in a 1:1 ratio duo-pak cartridge. The EPX™ dispensing system mixes the components into a bubble-free, non-sag black paste for structural bonding and sealing. The mixed adhesive provides a 4-minute open time and reaches set strength in approximately 20 minutes at 23 °C. After cure, it combines 85 Shore A hardness with 420% strain at break and a continuous temperature range of -51 to 121 °C. Applications include manufacturing and assembly, building maintenance and repair, bonding door frames and sills, and general structural bonding and sealing.
Key features
- Rapid-setting formulation: Provides a 4-minute open time and approximately 20-minute set time at 23 °C.
- Controlled 1:1 dispensing: Duo-pak packaging supports automatic component mixing and bubble-free application through the 3M™ EPX™ system.
- Flexible cured performance: Delivers 420% strain at break, 85 Shore A hardness, and a continuous temperature range of -51 to 121 °C.
Applications / Suitable for
- Manufacturing and assembly
- Building and construction maintenance and repair
- Bonding wood or metal door sills to concrete
- Bonding wood and metal door frames to supporting structures
- General structural bonding and sealing
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Mechanical Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical values for the individual components and mixed adhesive. These values are representative and are not intended for specification purposes.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mixed color | Black | — | Typical mixed adhesive |
| Mix ratio by volume | 1:1 | B:A | As supplied in a duo-pak cartridge |
| Base viscosity | 800–2,000 | cP | 23 °C; Brookfield CP #3 at 20 rpm |
| Accelerator viscosity | 1,500–3,500 | cP | 23 °C; Brookfield CP #3 at 20 rpm |
| Open time | 4 | min | Maximum time after application before the bond is closed and fixed |
| Work life | 4 | min | 10 g mixed adhesive at 23 °C |
| Set time | 20 | min | 23 °C; minimum time to reach 0.3 MPa overlap shear strength |
After-processing / final-state properties
Typical cured and bonded performance values under the stated test conditions. Results may vary with substrate, preparation, bondline, and curing conditions.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Cured color | Black | — | Typical cured adhesive |
| Modulus | 6,700 | lb/in² | ASTM D638 / ISO 527 at 23 °C |
| Strain at break | 420 | % | ASTM D638 / ISO 527 at 23 °C |
| Shore A hardness | 85 | Shore A | ASTM D2240 at 23 °C |
| Continuous temperature range | -51 to 121 | °C | Typical cured characteristic |
| Overlap shear strength — aluminum | 650 | lb/in² | ASTM D1002 / ISO 4587; 23 °C; 7-day dwell; MEK/abrade/MEK preparation |
| Overlap shear strength — polycarbonate | 720 | lb/in² | ASTM D1002 / ISO 4587; 23 °C; 7-day dwell; IPA wipe/abrade/IPA wipe |
| Bell peel | 33 | lb/in width | ASTM D3167; etched aluminum; 23 °C |
