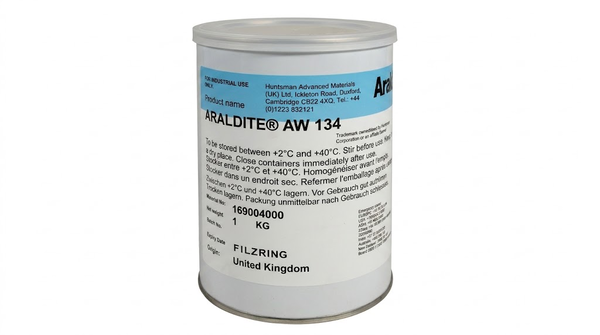

ARALDITE AW134
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Controlled Paste-Grade Resin Handling
- 80-to-100-Minute System Pot Life
- Multipurpose Metal and Ceramic Bonding
Product Description
ARALDITE AW 134 Epoxy Resin is a white-to-beige paste resin component for a two-part, room-temperature-curing epoxy adhesive system used with ARADUR HY 991. The resin has a typical specific gravity of 1.2 to 1.3 and viscosity of 20 to 40 Pa s. The complete system mixes at 100:30 by weight or 100:40 by volume and provides a typical 80-to-100-minute pot life for 100 g at 25 deg C. When combined with the specified hardener, it forms a solvent-free multipurpose adhesive for bonding metals, ceramics, and other common substrates. Cured-joint properties belong to the complete AW 134/HY 991 formulation and cure.
Key features
- Paste-grade resin handling: The AW 134 component has a typical viscosity of 20 to 40 Pa s.
- Extended mixed working window: The AW 134/HY 991 system provides a typical 80-to-100-minute pot life at 25 deg C.
- Room-temperature epoxy system: The specified resin and hardener form a solvent-free adhesive that cures at room temperature.
Applications
Bonding metals, ceramics, and other common substrates within the specified AW 134/HY 991 adhesive system.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
AW 134 component values are separated from mixed AW 134/HY 991 system data.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| AW 134 appearance | White to beige paste | - | Visual; typical |
| AW 134 specific gravity | 1.2 to 1.3 | - | Typical |
| AW 134 viscosity | 20 to 40 | Pa s | Typical |
| System mix ratio | 100:30 by weight; 100:40 by volume | parts | AW 134 resin to HY 991 hardener |
| Mixed pot life | 80 to 100 | min | 100 g at 25 deg C; typical |
