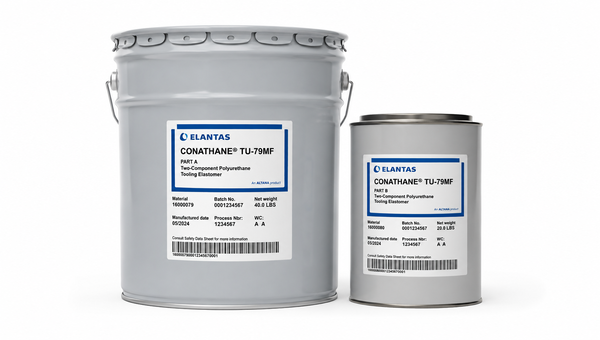

ELANTAS TU-79MF
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- Abrasion-Resistant Polyurethane Tooling Elastomer
- 4,000 cP Mixed Viscosity
- 1,800 psi Cured Tensile Strength
Product Description
CONATHANE® TU-79MF Polyurethane Tooling Elastomer is an unfilled, two-component, room-temperature-curing, 100% solids polyurethane system for casting and potting abrasion-resistant elastomeric parts. The clear light-amber system is documented for metal-polishing and finishing linings, industrial wheels, metal-forming pads, flexible molds, washers, gaskets, bushings, and vibration, shock, or sound-damping pads. It uses a 100:45 mix ratio by weight or volume and has a typical initial mixed viscosity of 4,000 cP with a 25 to 35-minute work life. Typical cured properties include Shore A 78 hardness and 750% elongation.
Key features
- Abrasion-resistant tooling elastomer: The system is documented for linings, wheels, molds, gaskets, and damping pads.
- Controlled casting process: Typical mixed viscosity is 4,000 cP with a 25 to 35-minute work life.
- Highly extensible cured material: Typical cured elongation is 750% with Shore A 78 hardness.
Applications / Suitable for
- Metal-polishing and finishing linings
- Industrial wheels, forming pads, and flexible molds
- Washers, gaskets, bushings, and damping pads
TDS, SDS & Technical Documents
Technical Specifications
No specifications available.
Additional Information
As-supplied / before-processing properties
Typical as-supplied or processing-state values unless otherwise stated. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A viscosity | 5,000 | cP | At 25°C |
| Part B viscosity | 1,500 | cP | At 25°C |
| Part A specific gravity | 1.07 | N/A | At 25°C |
| Part B specific gravity | 1.08 | N/A | At 25°C |
| Mix ratio | 100:45 | parts by weight | Part A : Part B |
| Initial mixed viscosity | 4,000 | cP | At 25°C |
| Work life | 25 to 35 | min | At 25°C |
| Cure options | 7 days at 25°C; 1 h at 25°C plus 16 h at 80°C | N/A | Documented schedules |
After-processing / final-state properties
Typical cured or final-state values under the stated system and test conditions. These values are not sales specifications.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 78 | Shore A | ASTM D2240 |
| Tensile strength | 1,800 | psi | ASTM D412 |
| Ultimate elongation | 750 | % | ASTM D412 |
| Graves tear strength | 325 | pli | ASTM D412 |
| Linear shrinkage | <0.5 | % | Cured at 25°C |
| Compression set | 28 | % | ASTM D395 Method B |
