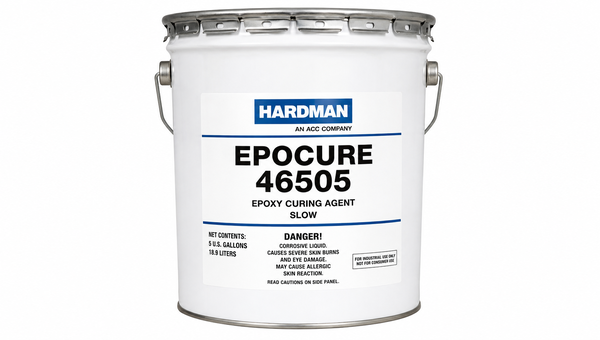

EPOCURE 46505
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
- Filter-Media-to-Metal End-Cap Bonding
- Synthetic-Lubricant and Motor-Oil Resistance
- 125-Minute Gel Window
Product Description
EPOCAP® 46505 / EPOCURE® 50114 is a filled, two-component, room temperature curing epoxy system designed primarily for bonding and sealing filter media to metal end caps. It is also highly effective for the potting and encapsulation of various electrical and electronic components, offering exceptional resistance to synthetic lubricants and motor oil.
Key features
- Excellent chemical resistance: Delivers outstanding durability against exposure to synthetic lubricants and motor oils.
- Optimized for processing: Formulated with non-abrasive fillers and an extended 125-minute gel time to accommodate complex potting and dispensing tasks.
- Versatile performance: Cures completely at room temperature while maintaining a strong 85 Shore D hardness for robust mechanical protection.
Applications / Suitable for
- Bonding and sealing filter media to metal end caps.
- Potting and encapsulation of transformers, coils, switches, and connectors.
- Protecting electrical and electronic components in lubricant-exposed environments.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Physical Properties
Additional Information
As-supplied / before-processing properties
Pre-cure processing characteristics of mixed EPOCAP® 46505 / EPOCURE® 50114.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Appearance / Color (Mixed) | Neutral | - | - |
| Mix Ratio (Weight) | 100:18 | - | Part 46505 to Part 50114 |
| Mix Ratio (Volume) | 100:28 | - | Part 46505 to Part 50114 |
| Viscosity (Mixed) | 8,000 | cps | at 25°C |
| Specific Gravity (Mixed) | 1.42 | - | at 25°C |
| Gel Time | 125 | minutes | 100 gm mass at 25°C |
| Filler Type | Non-Abrasive | - | Present in Part 46505 |
After-processing / final-state properties
Typical cured mechanical and thermal properties of EPOCAP® 46505 / EPOCURE® 50114.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Hardness | 85 | Shore D | Tested at 25°C |
| Heat Distortion Temperature | 50 | °C | - |
| Thermal Conductivity | 3.55 x 10^-4 | cal x cm/sec x cm² x °C | - |
