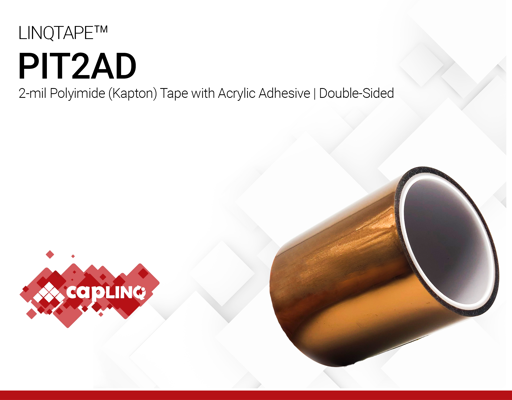

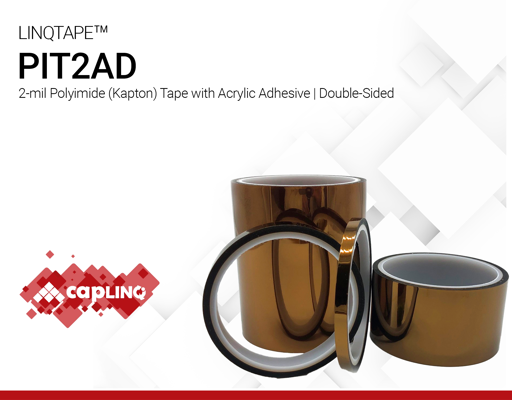

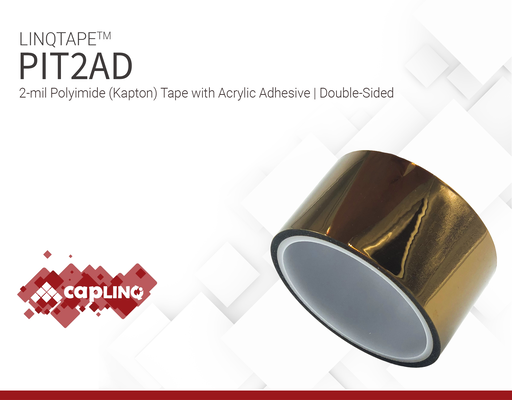

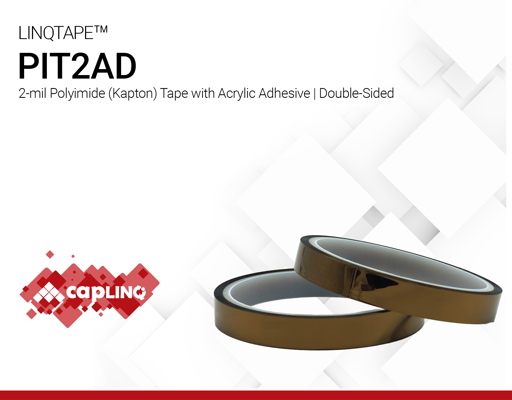

PIT2AD | 2-mil Polyimide (Kapton) Tape with Acrylic Adhesive | Double-Sided
Harmonization Code : 3919.90.80.99 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 2 mil polyimide film
- Double sided acrylic adhesive
- 11,000V Breakdown Voltage
Product Description
LINQTAPE PIT2AD-Series is a 2-mil, double-sided, high performance, high-temperature resistant, pressure sensitive polyimide tape designed for both permanent and temporary bonding in many high temperature applications. These applications include but are not limited to semiconductor, smartcard, electronic, automotive and general manufacturing industries.
LINQTAPE PIT2AD Series Tape provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It can be used in applications that may see temperatures up to 155C.
LINQ PIT2AD
1. Select Width
2. Select Length
Price starting from €5.57
Product availability
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeks
Shipping in 2 weeks Shipping in 2 weeks Shipping in 2 weeksTDS, SDS & Technical Documents
Technical Specifications
Thermal Properties
Temperature ResistanceTemperature Resistance
155 ˚COther Properties
RoHS CompliantRoHS Compliant
YesVOC-Free (100% solids content)VOC-Free (100% solids content)
YesMechanical Properties
Adhesion StrengthAdhesion Strength
25 Oz/inElongationElongation
50 %Tensile Strength (Thin Film)Tensile Strength (Thin Film)
53 N/cmGeneral Properties
Adhesive LayerAdhesive Layer
AcrylicAdhesive ThicknessAdhesive Thickness
38.1 µmChemistry TypeChemistry Type
PolyimideColorColor
AmberFilm ThicknessFilm Thickness
50.8 µmRelease LinerRelease Liner
Single Release LinerSingle or Double-Sided AdhesiveSingle or Double-Sided Adhesive
Double-SidedSpecial LayerSpecial Layer
NoneTotal ThicknessTotal Thickness
127.0 μmElectrical Properties
Breakdown VoltageBreakdown Voltage
>10000 VDielectric StrengthDielectric Strength
197 kV/mmVolume ResistivityVolume Resistivity
10000000000000 Ohms⋅cm
