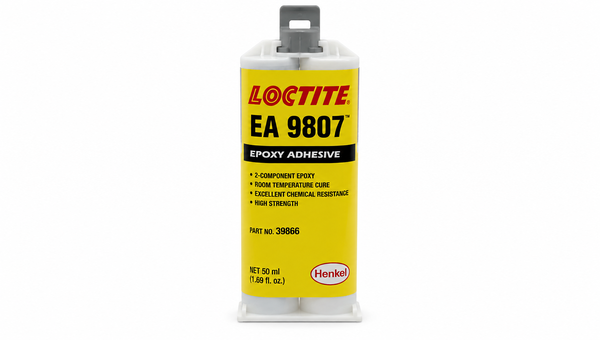

LOCTITE EA 9807
Harmonization Code : 5906100000 | Adhesive tape of a width not exceeding 20cm
Main features
- Pourable Intermediate-Density Epoxy Syntactic
- Room-Temperature or Heat Cure
- 121 deg C Service Temperature
Product Description
LOCTITE® EA 9807 AERO is a two-part, intermediate-density structural epoxy syntactic potting compound for potting and edge-filling honeycomb assembly parts and repair areas. The purple mixed material has a pourable consistency and a 90-minute pot life for a 100 g mass at 25°C. It cures at room temperature or may be heat cured after a minimum 60-minute ambient gel period. The formulation combines flame-retardant characteristics, controlled exotherm and cured mechanical performance for aerospace honeycomb assembly applications. Its defined service temperature is 121°C (250°F), based on retaining 6.9 MPa (1,000 psi) lap shear strength under ASTM D1002.
Key features
- Pourable syntactic epoxy: Supports controlled placement in potting and edge-fill areas.
- Flexible cure options: Cures in 5 to 7 days at 25°C or may be heat cured after a minimum 60-minute ambient gel period.
- High-temperature capability: Has a defined service temperature of 121°C (250°F) based on ASTM D1002 lap shear performance.
Applications / Suitable for
- Potting honeycomb assembly parts
- Honeycomb edge filling
- Honeycomb assembly repair applications
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Thermal Properties
Additional Information
As-supplied / before-processing properties
Typical properties of the separate components and mixed material before cure.
| Property | Value | Method / condition |
|---|---|---|
| Components | Two components | Requires mixing |
| Appearance | Resin: purple Hardener: amber Mixed: purple |
As supplied and mixed |
| Mix ratio | 100:29.6 | Resin:hardener by weight |
| Resin density | 0.82 g/cm³ | Part A |
| Hardener density | 0.96 g/cm³ | Part B |
| Mixed density | 0.85 g/mL | Mixed material |
| Mixed viscosity | 14,194 mPa·s (cP) | Brookfield-RVT at 25°C; spindle 6, 20 rpm |
| Pot life | 90 minutes | 100 g mass at 25°C (77°F), in water bath; ASTM D2471 |
| Recommended cure | 5 days at 25°C (77°F) 90 minutes at 127°C (260°F) 60 minutes at 177°C (350°F) |
Elevated-temperature cures require a minimum 60-minute ambient gel period before heat exposure |
After-processing / final-state properties
Typical cured-material properties. Results depend on the stated cure schedule, specimen and test conditions.
| Property | Value | Method / condition |
|---|---|---|
| Shore hardness | 70 Shore D | Cured 5 days at 25°C (77°F); approximately 6.35 mm (0.25 in) thick |
| Glass-transition temperature, Tg | 67°C (153°F) 112°C (233°F) 107°C (225°F) 116°C (241°F) |
ASTM D7028, dry E′; respectively cured 7 days at 25°C, 90 minutes at 127°C, 60 minutes at 177°C, and 14 days at 177°C |
| Coefficient of thermal expansion | CTE 1: 52.9 µm/m·°C CTE 2: 101.7 µm/m·°C |
ASTM E831-05; cured 7 days at 25°C; CTE 1 before Tg and CTE 2 after Tg |
| Tensile lap shear strength | 28.8 N/mm² (4,175 psi) 27.8 N/mm² (4,025 psi) 27.5 N/mm² (3,990 psi) |
ASTM D1002 / EN 2243-1 at 25°C; 2024-T3 clad aluminum, phosphoric-acid anodized, 10 mil bondline; respectively cured 7 days at 25°C, 60 minutes at 177°C and 14 days at 177°C |
| Compression ultimate strength at 25°C | 73.5 MPa (10.7 ksi) 86.2 MPa (12.5 ksi) 98.9 MPa (14.3 ksi) |
ASTM D695 / ISO 604; respectively cured 7 days at 25°C, 60 minutes at 177°C and 14 days at 177°C |
| Service temperature | 121°C (250°F) | Defined as the temperature at which the adhesive retains 6.9 MPa (1,000 psi) under ASTM D1002 |
