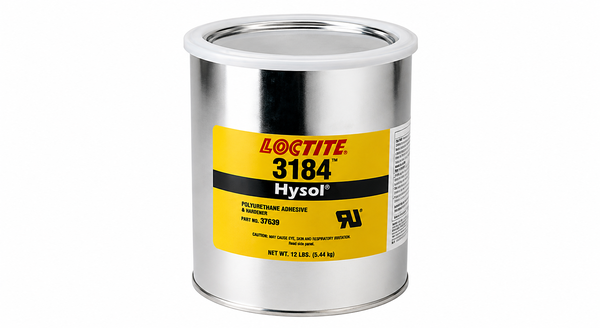

LOCTITE UK3184
Harmonization Code : 3907.30.00.40 | Epoxy Mold Compounds containing by weight more than 70 % silicon dioxide
Main features
- UK 3173 System Hardener
- 45-Minute System Work Time
- 24-Hour Room-Temperature Cure
Product Description
LOCTITE UK 3184 Polyurethane Hardener functions as the polyurethane hardener component specified for the LOCTITE UK 3173 / UK 3184 potting system. The opaque white material has a typical viscosity of 14,000 mPa s and specific gravity of 1.45 to 1.46 at 25 deg C. When combined with UK 3173 resin at 1:4.8 by volume or 15:85 by weight, the mixture has 2,250 mPa s viscosity, a 45 minute work time, and a 24 hour room-temperature cure. Cured properties, including Shore A 80 hardness and a -15 deg C glass transition temperature, apply only to the complete resin-hardener system.
Key features
- Dedicated UK 3173 Hardener: Specified as the hardener component for the UK 3173 / UK 3184 potting system.
- Controlled 1:4.8 Volume Mixing: Combines with UK 3173 resin at the documented volume or weight ratio.
- 45-Minute Potting Work Time: The complete mixed system provides a 45 minute work time at 25 deg C.
Applications
Applications include potting and encapsulation using the complete LOCTITE UK 3173 / UK 3184 resin-hardener system.
TDS, SDS & Technical Documents
Technical Specifications
Physical Properties
General Properties
Thermal Properties
Electrical Properties
Additional Information
Hardener properties
Values apply to the LOCTITE UK 3184 hardener component before mixing.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Chemical type | Polyurethane hardener | UK 3184 component | |
| Appearance | Opaque white | As supplied | |
| Viscosity | 14,000 | mPa s | 25 deg C, Brookfield, spindle 5, 20 rpm |
| Specific gravity | 1.45 to 1.46 | 25 deg C |
UK 3173 / UK 3184 system properties
Final-state values apply only to the complete UK 3173 / UK 3184 system, not to the hardener alone.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Mix ratio | 1:4.8 | by volume | UK 3173 resin : UK 3184 hardener |
| Mix ratio | 15:85 | by weight | UK 3173 resin : UK 3184 hardener |
| Mixed viscosity | 2,250 | mPa s | 25 deg C |
| Work time | 45 | min | 300 g mass at 25 deg C |
| Gel time | 150 | min | 300 g mass at 25 deg C |
| Cure schedule | 24 | h | 25 deg C |
| Hardness | 80 | Shore A | Cured system |
| Glass transition temperature | -15 | deg C | ASTM E1545, cured system |
