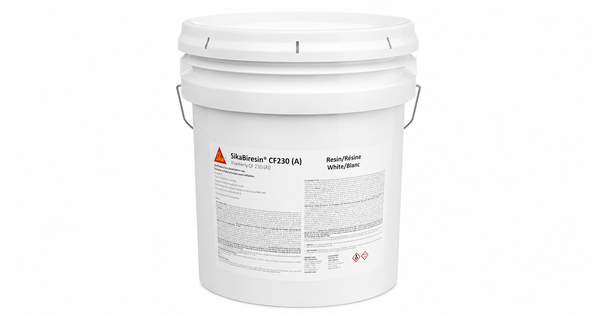

SIKABIRESIN CF230A
Harmonization Code : 3910.00.00.90 | Silicones in Primary Forms; Others
Main features
- 0.63 g/cm3 Part A density
- 100:24 system weight ratio
- Honeycomb edge-filling resin component
Product Description
SikaBiresin CF230 Part A Epoxy Edge-Filling Resin is the white or black epoxy paste component of the two-part CF230/CF234 edge-filling system. The low-density Part A resin has a typical specific gravity of 0.63 at 25 deg C and is mixed with CF234 Part B at 100:24 by weight. The resulting smooth paste is applied under pressure to honeycomb cell edges and has a typical 11-minute pot life at 25 deg C. The complete system is used for edging aluminum and other honeycomb sandwich structures, cell densification for insert anchoring, and localized panel repairs. Final cured properties apply only to the complete CF230/CF234 system.
Key features
- Controlled system ratio: CF230 Part A and CF234 Part B are mixed at 100:24 by weight
- Low-density epoxy paste: Part A has a typical specific gravity of 0.63 at 25 deg C
- Short mixed pot life: The 116 g CF230/CF234 mixture has an 11-minute pot life at 25 deg C
Applications
Edge filling of aluminum and other honeycomb sandwich structures; core-cell densification for insert anchoring; localized sandwich-panel repairs.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Part A properties are separated from processing values for the complete CF230/CF234 system.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Composition | Epoxy | CF230 Part A | |
| Aspect | Paste | As supplied | |
| Color | White or black | CF230 Part A | |
| Specific gravity | 0.63 | g/cm3 | At 25 deg C |
| System mix ratio by weight | 100:24 | CF230 Part A:CF234 Part B | |
| Mixed-system pot life | 11 | minutes | 116 g mixture at 25 deg C |
| Shelf life | 12 | months | Original unopened container at 15-25 deg C |
